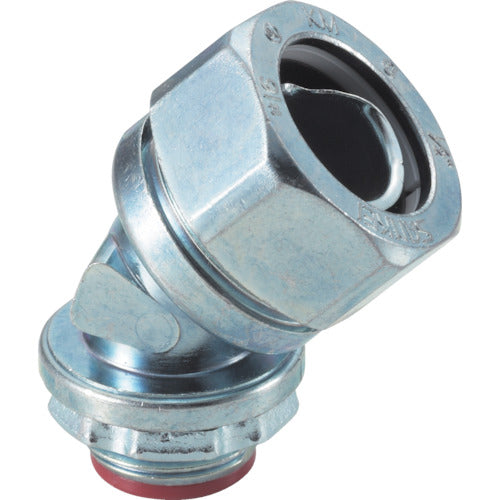

SANKEI K-Flex 45° Connector for Knockout Connection with Parallel Pipe Thread KM45BG54 1 pc

Catalog number: KM45BG54 Features: ●An insulator is attached to the wire passage, so there is no need to install an insulating bushing. ●Convenient for wiring at 45°. Uses: ●For knockout connection of K-Flex to control panels. Specifications: ●Type: 45° connector ●Dimensions (mm) A: 80.0 ●Connection screw S1 (mm): 59.6 ●Dimensions (mm) L1: 16.0 ●Connection screw nominal diameter: G2 ●H (mm): 49 ●Maximum insertable cable outer diameter (mm): 48 ●Dimensions (mm) G: 25.0 ●Ambient temperature for use: -20 to 90°C ●UL standard product ●IP67 ●Compatible K-Flex: KMS, KMV, KPF, KIC, KIH, KIV, KPBF, KUU, KCS, KMB, KIB, KM, KI Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
