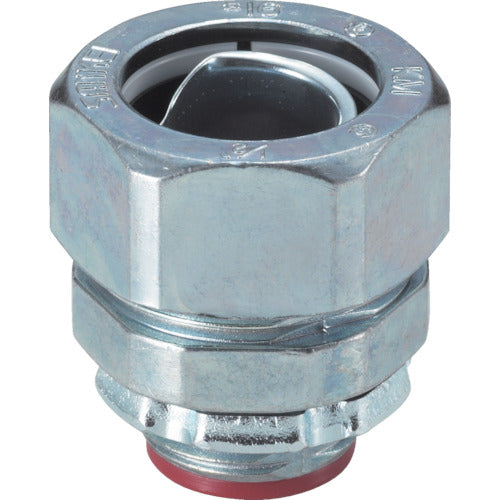

SANKEI Connector (for knockout connection) KMBG12 1 piece

Catalog number: KMBG12 Features: ●Since an insulator is attached to the destination port, it is not necessary to install an insulating bushing. Applications: ●Connector for connecting K-Flex to the knockout of a control panel. Specifications: ●Type: Connector (for knockout connection) ●Dimensions (mm) A: 30.4 ●Connection screw S1 (mm): 20.9 ●Dimensions (mm) L1: 10.0 ●Connection screw nominal diameter: G1/2 ●Dimensions (mm) L2: 22 ●Maximum outer diameter of insertable cable (mm): 10 ●Connector ●For knockout connection ●Ambient temperature for use: -20 to 90°C ●Compatible K-Flex: KMS, KMV, KPF, KIC, KIH, KIV, KPBF, KUU, KCS, KMB, KIB, KM, KI Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
