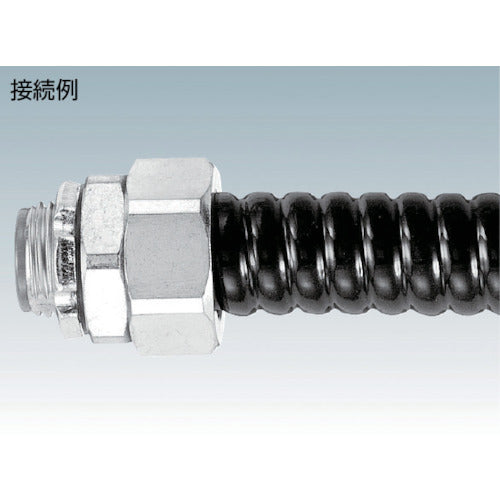

Catalog number: KMBG36 Features: ●Since an insulator is attached to the wire passage port, it is not necessary to install an insulating bushing. Applications: ●Connector for connecting K-Flex to knockouts of control panels. Specifications: ●Type: Connector (for knockout connection) ●Dimensions (mm) A: 58.8 ●Connection screw S1 (mm): 41.9 ●Dimensions (mm) L1: 14.0 ●Connection screw nominal diameter: G1-1/4 ●Dimensions (mm) L2: 29 ●Maximum outer diameter of insertable cable (mm): 32 ●Ambient temperature during use: -20 to 90°C ●Compatible K-Flex: KMS, KMV, KPF, KIC, KIH, KIV, KPBF, KUU, KCS, KMB, KIB, KM, KI Materials/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
