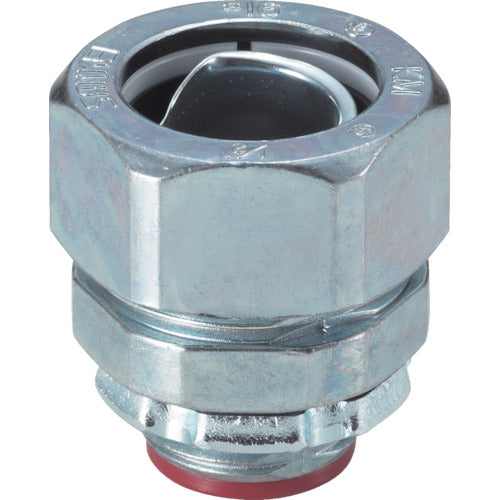

SANKEI Connector (for knockout connection) KMBG54 1 piece

Catalog number: KMBG54 Features: ●Since an insulator is attached to the end port, it is not necessary to install an insulating bushing. Applications: ●Connector for connecting K-Flex to a knockout on a control panel. Specifications: ●Type: Connector (for knockout connection) ●Dimensions (mm) A: 80.0 ●Connection screw S1 (mm): 59.6 ●Dimensions (mm) L1: 16 ●Dimensions (mm) L2: 34 ●Maximum outer diameter of insertable cable (mm): 48 ●Nominal diameter: 2 ●Ambient temperature for use: -20 to 90°C Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
