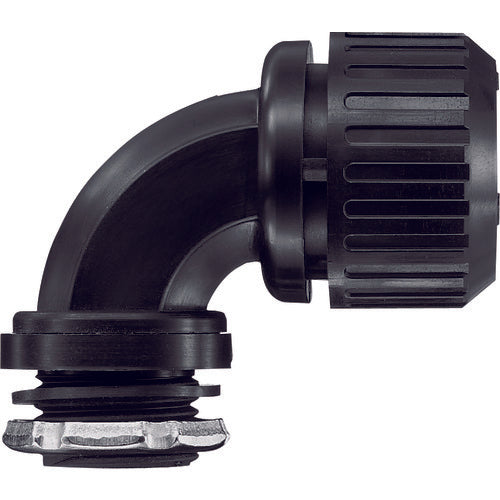

SANKEI Sanflex ROBO accessory 90° connector (for knockout connection) N29BG16 1 piece

Catalog number: N29BG16 Features: ●Quick connection, the cap nut can be tightened by hand. ●Halogen-free, flame-retardant to UL94V2. ●Waterproof to IP67 (dustproof and water-resistant). ●Convenient for wiring at 90°. Applications: ●For knockout connection of Sanflex ROBO to control panels. Specifications: ●Color: Black ●Type: 90° Connector ●Dimensions (mm) A: 29.9 ●Connection screw S1 (mm): 20.9 ●Dimensions (mm) L1: 12 ●Connection screw nominal diameter: G1/2 ●F: 41 ●Maximum outer diameter of insertable cable (mm): 10 ●E: 24 ●Ambient temperature: -20 to 90°C ●Compatible with Sanflex ROBO: NS, NP, NF ●UL standard ●IP67 ●Halogen-free Material/Finish: ●Body: Polyamide (PA) Note: ●Additional shipping charges for Okinawa and remote islands
