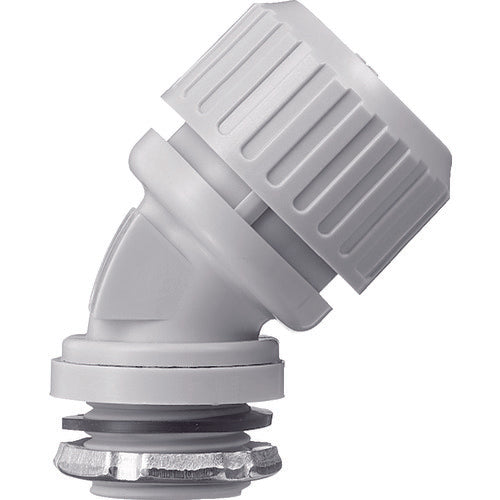

SANKEI Sanflex ROBO 45° Connector for Knockout Connection with Parallel Pipe Threads, Light Gray, N24BG25LG, 1 Piece

Catalog number: N24BG25LG Features: ●Quick-connect type, the cap nut can be tightened by hand. ●Halogen-free, flame-retardant to UL94V2. ●Waterproof to IP67 (dustproof and water-resistant). ●Convenient for wiring at 45°. Applications: ●For knockout connection of Sunflex ROBO to control panels. Specifications: Color: Light gray Type: 45° connector Dimensions (mm) A: 40.8 Connection screw S1 (mm): 26.4 Dimensions (mm) L1: 12 Connection screw nominal diameter: G3/4 H (mm): 39 Dimensions (mm) G: 16 Maximum insertable cable outer diameter (mm): 19 Ambient temperature during use: -20 to 90°C Compatible Sunflex ROBO: NS**LG, NP**LG, NF**LG UL standard product IP67 Halogen-free Material/Finish: Body: Polyamide (PA) Note: Additional shipping charges for Okinawa and remote islands
