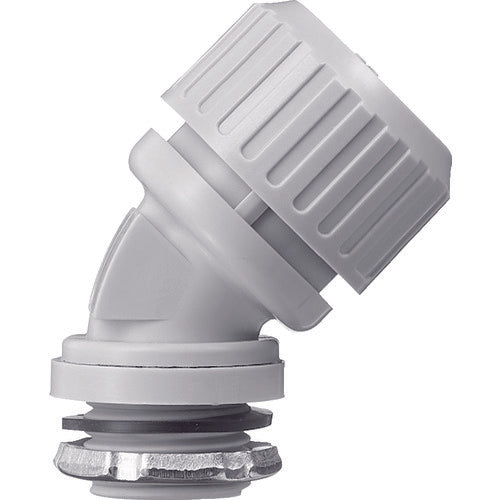

SANKEI Sanflex ROBO 45° Connector for Knockout Connection with Parallel Pipe Threads, Light Gray, N24BG32LG, 1 Piece

Catalog number: N24BG32LG Features: ●Quick-connect type, the cap nut can be tightened by hand. ●Halogen-free, flame-retardant to UL94V2. ●Waterproof to IP67 (dustproof and water-resistant). ●Convenient for wiring at 45°. Applications: ●For knockout connection of Sunflex ROBO to control panels. Specifications: ●Color: Light gray ●Type: 45° connector ●Dimensions (mm) A: 48.3 ●Connection screw S1 (mm): 33.2 ●Dimensions (mm) L1: 14 ●Connection screw nominal diameter: G1 ●H (mm): 40 ●Dimensions (mm) G: 18 ●Maximum outer diameter of insertable cable (mm): 25 ●Ambient temperature during use: -20 to 90°C ●Compatible Sunflex ROBO: NS**LG, NP**LG, NF**LG ●UL standard product ●IP67 ●Halogen-free Material/Finish: ●Body: Polyamide (PA) Note: ●Additional shipping charges for Okinawa and remote islands
