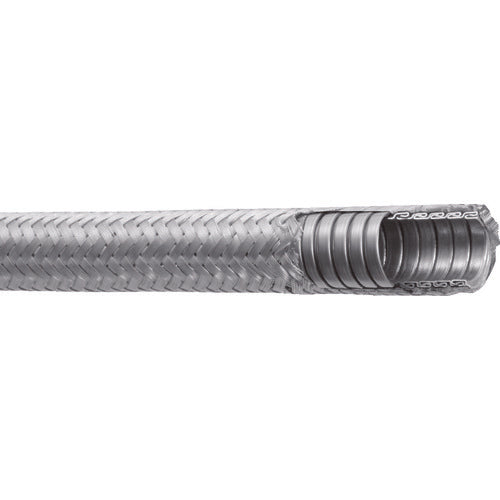

SANKEI Electrical Conduit Blade-Hooked Keiflex (for fixed piping) Inner diameter 12.3 x outer diameter 17.1 mm KIB12 1 roll

Catalog number: KIB12 Features: ● Use heat-resistant cables in high-temperature locations, and cables/vinyl cords in other locations. Use standard type (KM type) accessories. However, if using with high-temperature specifications or high-tensile specifications, use KB type. ● Excellent heat resistance and mechanical strength, and should be used in high-temperature locations, locations where welding beads are generated, locations where hot cutting chips are present, and piping under tension. Applications: ● Low electrical resistance, making it suitable for piping to prevent noise. Specifications: ● Inner diameter (mm): 12.3 ● Outer diameter (mm): 17.1 ● Length (m): 30 ● Minimum bending radius (mm): 60 ● Ambient temperature during use: -50 to 150°C ● Fixed minimum bending radius (mm): 60 ● Noise and spatter resistance ● Non-waterproof ● Fixed piping ● Ambient temperature during use: -50 to 150°C Material/Finish: ● Braided galvanized steel wire Note: ● Additional shipping charges for Okinawa and remote islands
