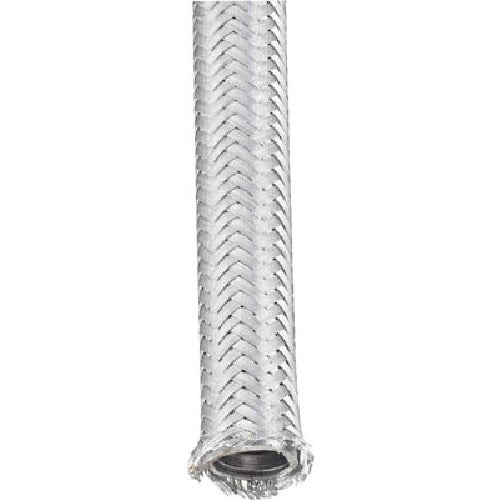

SANKEI Electrical Conduit Braided Keiflex (for Machinery/Plant/Fixed Piping) Inner Diameter 20.8 x Outer Diameter 25.7 mm KIB22 1 Roll

Catalog number: KIB22 Features: ● Use heat-resistant cables in high-temperature locations, and cables/vinyl cords in other locations. Use standard type (KM type) accessories. However, if using with high-temperature specifications or high-tensile specifications, use KB type. ● Excellent heat resistance and mechanical strength, and should be used in high-temperature locations, locations where welding beads are generated, locations where hot cutting chips are present, and piping under tension. Applications: ● Low electrical resistance, making it suitable for piping to prevent noise. Specifications: ● Inner diameter (mm): 20.8 ● Outer diameter (mm): 25.7 ● Length (m): 20 ● Minimum bending radius (mm): 120 ● Ambient temperature for use: -50 to 150°C ● Fixed minimum bending radius (mm): 120 ● Noise and spatter resistance ● Non-waterproof ● Fixed piping Material/Finish: ● Braided galvanized steel wire Note: ● Additional shipping charges for Okinawa and remote islands
