SANKEI 90° connector (for knockout connection) KM90BG42 ​​1 piece

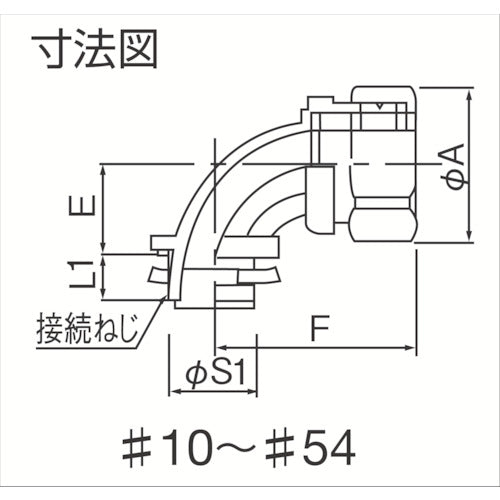

Catalog number: KM90BG42 ​​Features: ●Since an insulator is attached to the wire passage port, it is not necessary to install an insulating bushing. Applications: ●90° connector for connecting K-Flex to knockouts of control panels. Specifications: ●Type: 90° connector ●Dimensions (mm) A: 66.8 ●Connection screw S1 (mm): 47.8 ●Dimensions (mm) L1: 16 ●Connection screw nominal diameter: G1-1/2 ●Length (mm): 61 ●Outer diameter (mm): 66.8 ●Maximum insertable cable outer diameter (mm): 37 ●Dimensions (mm) E: 35.6 ●Dimensions (mm) F: 61 ●Ambient temperature during use: -20 to 90°C ●Compatible K-Flex: KMS, KMV, KPF, KIC, KIH, KIV, KPBF, KUU, KCS, KMB, KIB, KM, KI Material/Finish: ●Body: Zinc alloy die-cast Note: ●Additional shipping charges for Okinawa and remote islands
