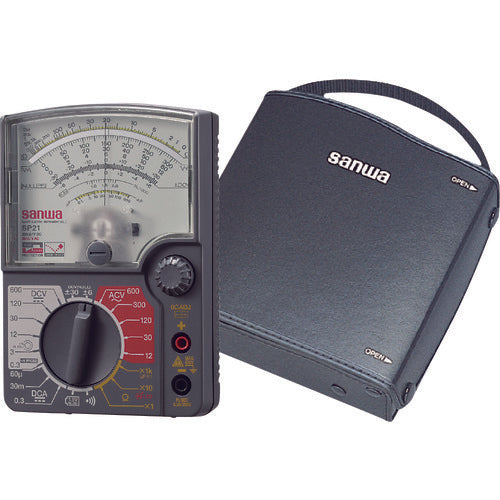

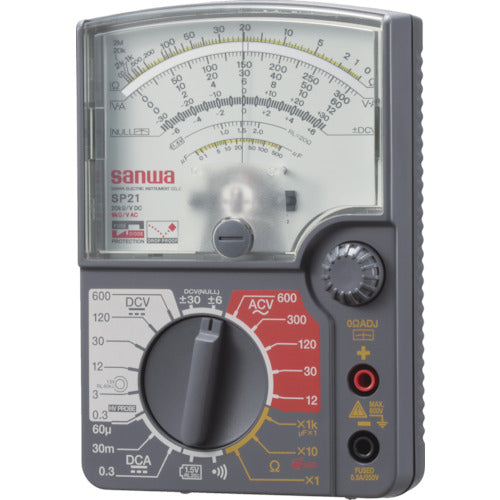

SANWA Analog Multitester with Hard Case SP21/C 1 unit

Catalog number: SP21/C Features: ● Equipped with a shock-resistant tote band meter. ● Equipped with a zero center meter (DCV). ● Comes with a carrying case. ● CE standard product. ● Equipped with a continuity check buzzer. ● Equipped with a double protection function of fuses and diodes to protect the circuit from overvoltage. Uses: ● Electrical work, equipment maintenance, home appliance repair ● Electronics work Specifications: ● DC voltage (V): 600 ● AC voltage (V): 600 ● DC current (A): 0.3 ● Resistance (Ω): 2M ● Battery check: 2V range for 1.5V (RL = 20Ω) ● Continuity check: Buzzer sounds at approximately 100Ω or less Open voltage: 3V ● Calibration documents: Supported ● Power supply (V): 2 AA batteries (R6P) (monitor batteries included) ● Width (mm): 99 ● Depth (mm): 41 ● Height (mm): 144 ● Power supply: 2 AA batteries (R6P) (monitor batteries included) ● Capacitor capacity (F): 500μ ● Battery check: 1.5V ● Width x Depth x Height (mm): 99 x 41 x 144 ● Comes with 1 spare fuse (F0301) ● New model fuse specifications: Φ5.2 x 20mm 250V/0.5A/IR35A Glass tube (F0301) *Old model fuse specifications: Φ6.3 x 30mm 250V/0.5A/IR300A Glass tube (F0305) Set contents/accessories: *Instruction manual *Test lead TL-21a *Carrying case C-SPH *Spare fuse (F0301) x 1 Caution: *Do not use on power lines exceeding 6 kVA. *Do not input signals that exceed the maximum rated input value. *Do not use if the main unit or test leads are damaged. *Do not hold the test pin side of the test lead beyond the flange during measurement. *Do not switch to other functions or ranges or change the plug during measurement.
