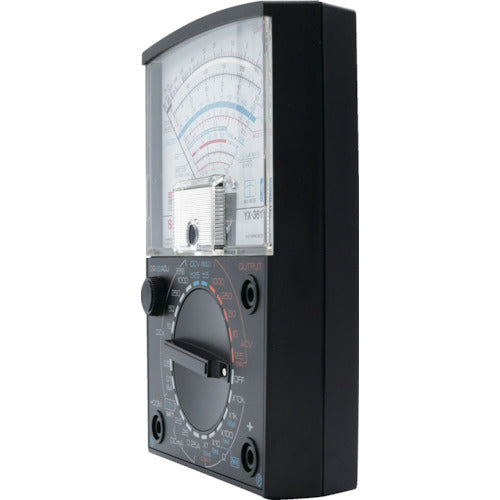

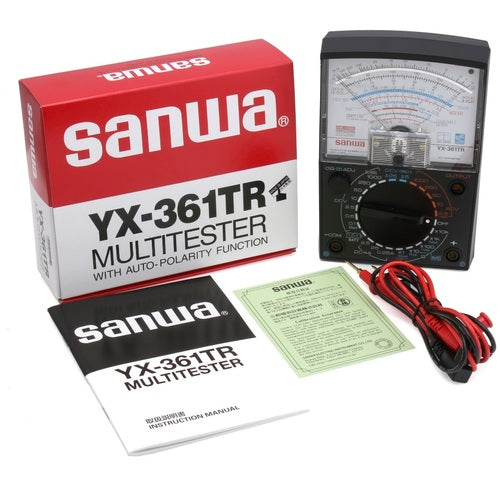

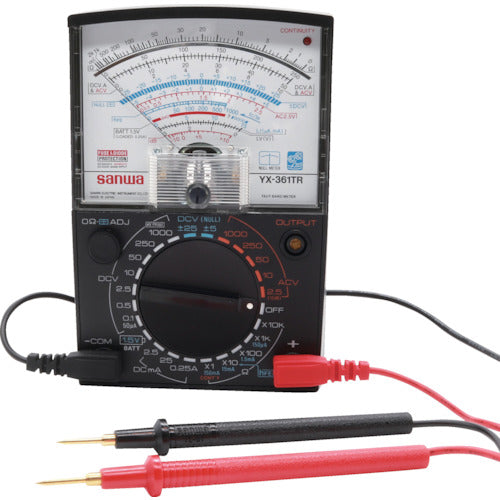

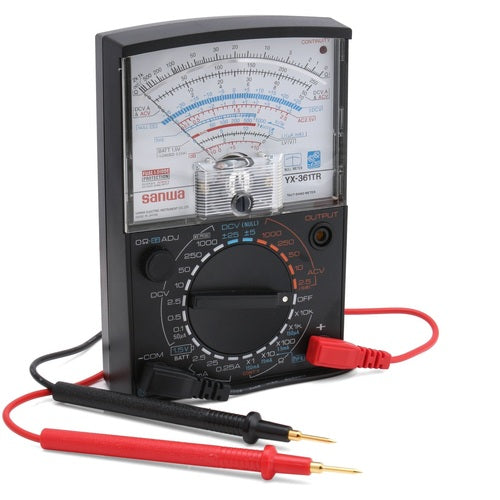

Catalog number: YX-361TR Features: ●Multifunctional type with 24 ranges. ●Equipped with a zero center meter for DCV. ●DC current amplification rate can be measured with a separately sold connector. ●Comes with an LED lamp for continuity indication. ●Uses a 24ch switch. ●Comes with a battery check function. ●Comes with an OUTPUT terminal (series capacitor terminal) Applications: ●For electrical work, equipment maintenance, and home appliance repair. ●For research and development. Specifications: ●DC voltage (V): 1000 ●AC voltage (V): 1000 ●DC current (A): 0.25 ●Resistance (Ω): 20M ●Battery check: 1.5V ●Continuity check: Open voltage: 3V ●Calibration documents: Supported ●Power supply (V): 2 AA batteries (R6P), 1 stacked 9V battery (monitor battery included) ●Width (mm): 100 ●Depth (mm): 37 ●Height (mm): 150 ●Electricity Power source: 2 AA batteries (R6P), 1 stacked 9V battery (monitor battery included) ●Low frequency output (db): -10 to 62 ●DC current gain (hFE): 0 to 1000 ●Width x depth x height: 100 x 37 x 150 mm ●Power source: 2 AA batteries (R6P), 1 stacked 9V battery (monitor battery included) ●Includes 1 spare fuse (F0301) ●Fuse specifications: 5.2 x 20 mm 250V/0.5A/IR35A glass tube (F0301) Set contents/accessories: ●Instruction manual ●Test lead TL-61 ●1 spare fuse (F0301) Caution: ●Do not use on power lines exceeding 6 kVA. ●Do not input signals exceeding the maximum rated input value. ●Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test lead beyond the flange during measurement. ●Do not switch to other functions or ranges or change the plug during measurement.
