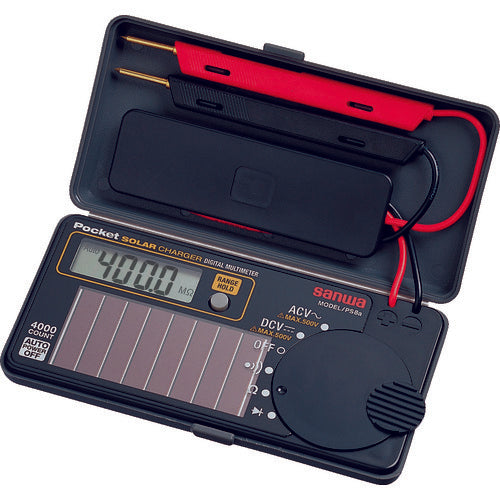

SANWA Solar-Charging Pocket-Type Digital Multimeter PS8A 1 unit

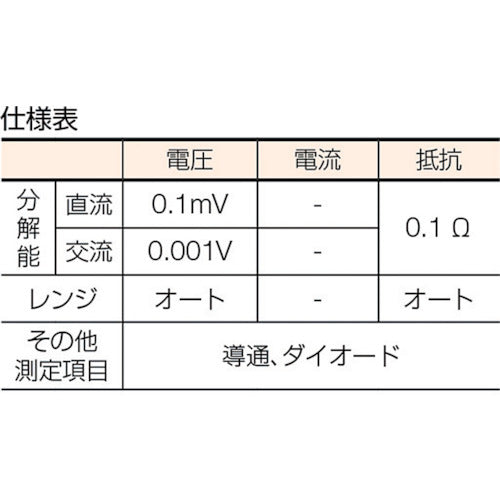

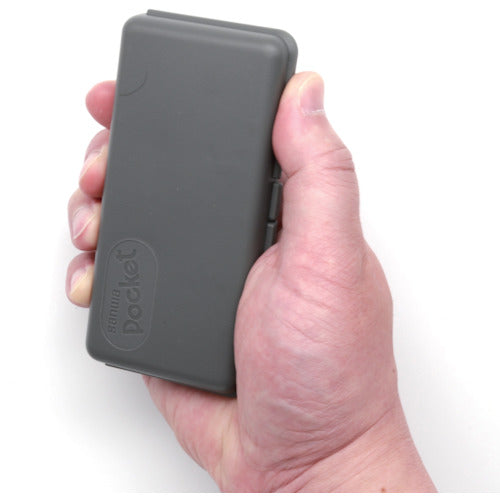

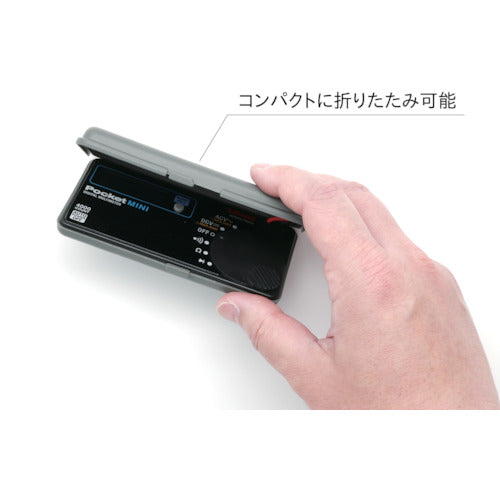

Catalogue number: PS8A Features: ●Foldable pocket type. ●Mechanism designed so that the lid does not close when the power is on. ●The lid is foldable. ●Maximum display: 4000 counts ●Solar rechargeable ●Auto power off function that operates in approximately 15 minutes (cannot be disabled) ●Conductivity range is low power ohms with an applied voltage of approximately 0.4V ●Equipped with range hold function Applications: ●For facility equipment maintenance. ●For electronic work. ●For measuring voltage on distribution boards, etc. ●For building maintenance. ●For facility preservation maintenance. Specifications: ● DC voltage (V): 500 ● AC voltage (V): 500 ● Resistance (Ω): 40M ● Detection method: Average value rectification (MEAN) ● Continuity check: Buzzer sounds at 10 to 120 Ω or less Open voltage: Approximately 0.4 V ● Calibration documents: Supported ● Power supply (V): Amorphous solar cell, lithium secondary battery x 1 (included) ● Width (mm): 57 ● Depth (mm): 18 ● Height (mm): 115 ● Power supply: Amorphous solar cell, lithium secondary battery x 1 (included) ● Width (mm): 115 ● Depth (mm): 18 ● Height (mm): 57 ● Continuous use time (h): Approximately 40 ● Maximum display (count): 4000 ● Diode test: Open voltage 1.5 V ● Case integrated ● Solar charging ● Auto power off function ● Test lead length 50 cm ● Test lead pin tip 15 mm Set contents / accessories: ● Instruction manual Caution: ●Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test probe from the flange during measurement. ●Connect the grounded side of the test leads (black test lead) first, then the live side (red test lead). When disconnecting, remove the live side first. ●Do not switch to another function or range or insert the test lead plug into another measurement terminal during measurement. ●Use fuses of the specified shape and rating.
