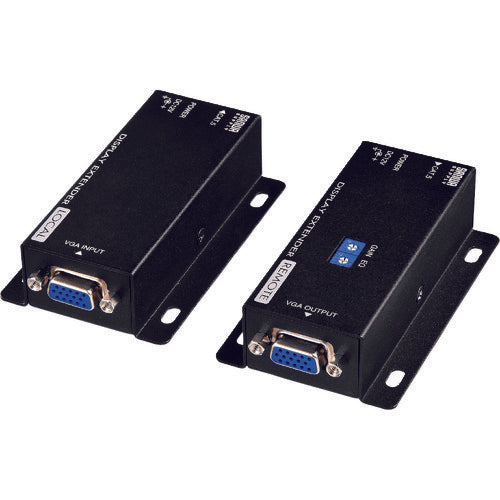

SANWA Display Extender (Receiver power not required, set model) VGA-EXSET3 1 piece

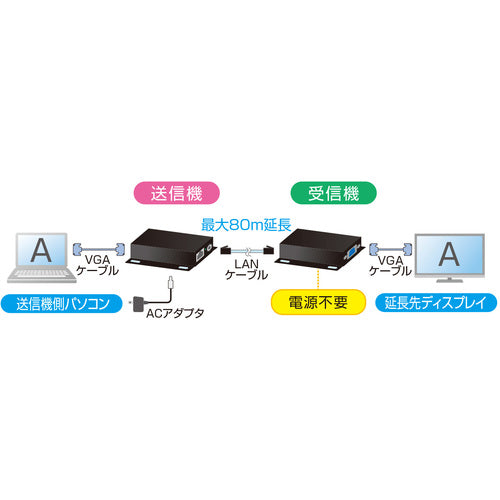

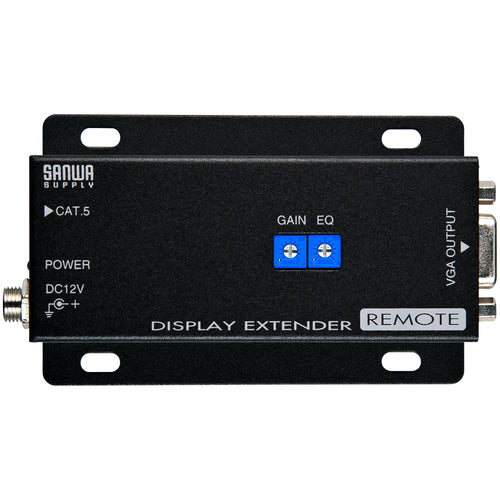

Catalog number: VGA-EXSET3 Features: ●This display extender extends video signals with a LAN cable that is easy to install and does not require a power supply on the receiver side. ●Since the receiver side does not require a power supply, this display extender is easy to install in environments where it is difficult to secure power, such as ceiling-mounted displays. ●It can extend and output analog display signals to displays up to 80m away. ●It consists of a transmitter and receiver set, and can extend between units using a UTP/STP Category 5/5e straight cable. ●Since it uses Category 5/5e cable, it is easier to handle and has excellent cost performance compared to normal display cables. ●The receiver part is equipped with a picture quality adjustment function, and image signals can be adjusted with simple operations. ●The AC adapter used on the transmitter side is screw-fixed to prevent it from falling off. Specifications: ●Compatible computers: Windows-equipped (DOS/V) computers, Apple Macintosh *Models with a mini D-sub (HD) 15-pin display connector. ●Compatible displays: Multi-scan displays with a mini D-sub (HD) 15-pin display connector *If the display side does not allow screen position correction, the screen display may shift slightly left or right. ●Maximum display resolution: 1920 x 1200 dots (WUXGA) *Can be extended up to 50m 1920 x 1080 dots (Full HD / 1080P) *Can be extended up to 50m 1280 x 720 dots (720p) *Can be extended up to 80m ●Compatible LAN cable: UTP / STP Category 5 / 5e straight cable ●Extension cable length: 80m (maximum) ●VGA bandwidth: 150MHz ●Interface Transmitter: Input: Mini D-sub (HD) 15pin female x 1 Output: RJ-45 female x 1 Receiver: Input: RJ-45 female x 1 Output: Mini D-sub (HD) 15pin female x 1 ●Current consumption Transmitter: 1.2W Receiver: 4.5W ●Case material: Steel ●Environmental conditions During operation: 5 to 40°C Humidity 10% to 80% or less (no condensation) During storage: -20 to 60°C Humidity 10% to 80% or less (no condensation)
