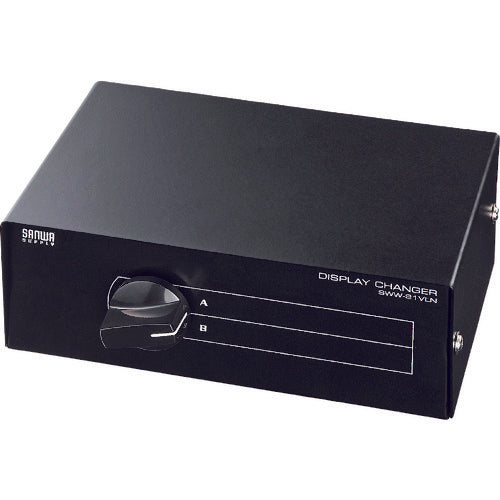

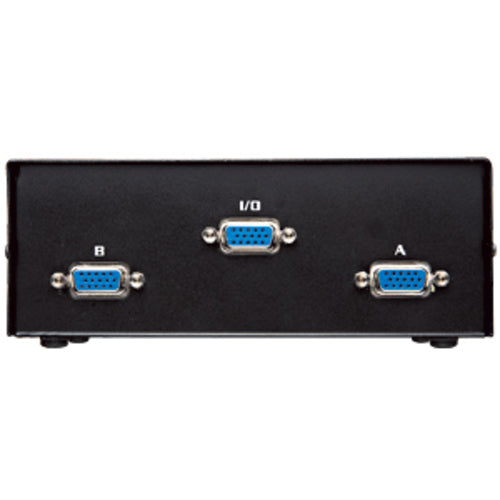

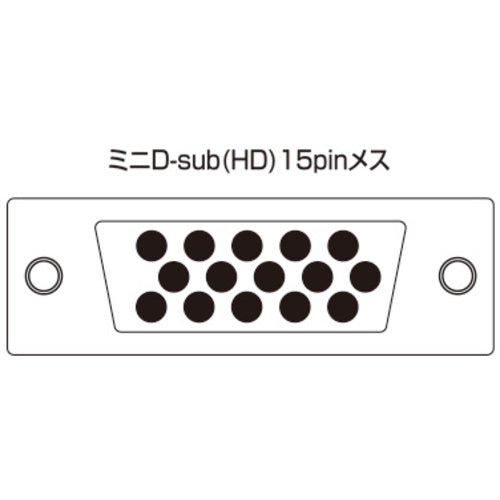

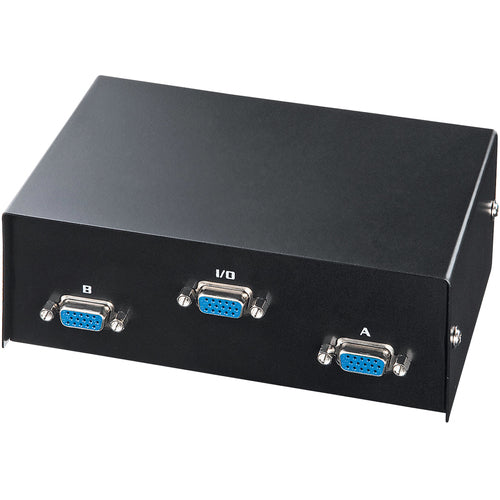

Catalog number: SWW-21VLN Features: ● A display switch with stable operation with all straight wiring and all circuit switching. ● A manual switching display switch that switches all signal lines from pin 1 to pin 15 of the display connector to straight on all circuits. ● When switching, the display cable is simply extended in a straight line, so compatibility issues are almost nonexistent. ● Also compatible with wide displays. ● RoHS compliant product. Specifications: ● Interface: HD (3WAY) 15-pin female x 4 ● Compatible computers: DOS/V computers, Apple Macintosh * Computers with HD (3WAY) 15-pin. ●Compatible output devices: displays, TVs, projectors *Models with HD (3WAY) 15-pin VGA input●Resolution/bandwidth: No restrictions *All resolutions that can be displayed by direct connection between PC and display device are supported●Switching content: 3:1 or 1:3●Operating temperature: 5 to 40°C●Storage temperature: -20 to 60°C●Humidity: 0 to 80%, no condensation●External material: Metal●Dimensions: W153 x D115 x H60.5mm (body size)
