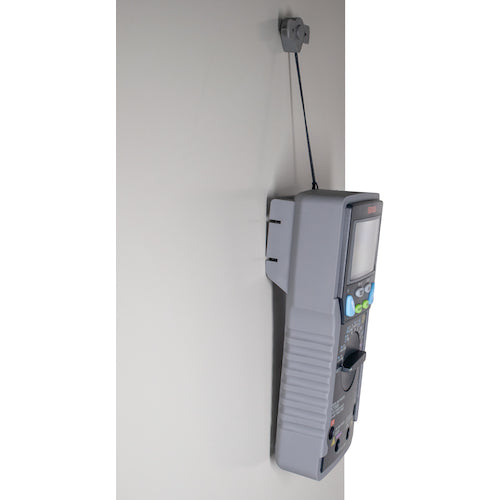

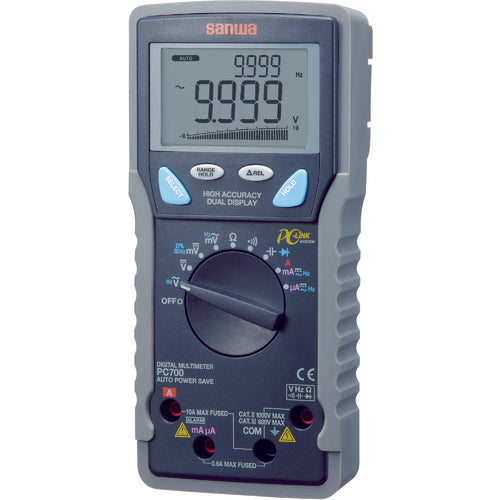

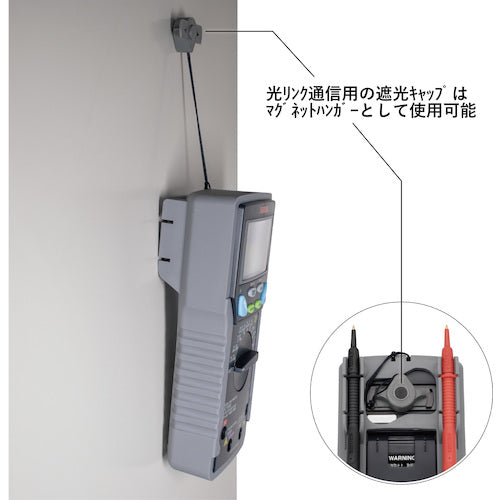

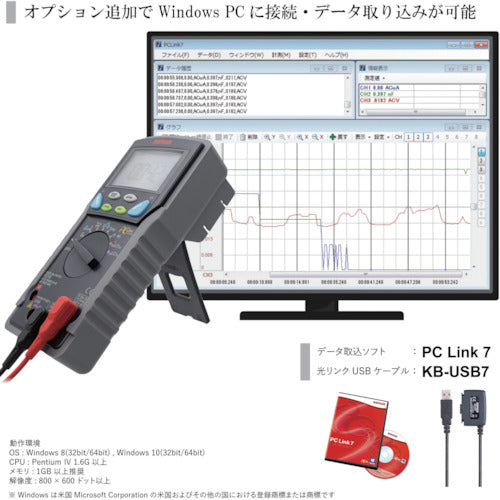

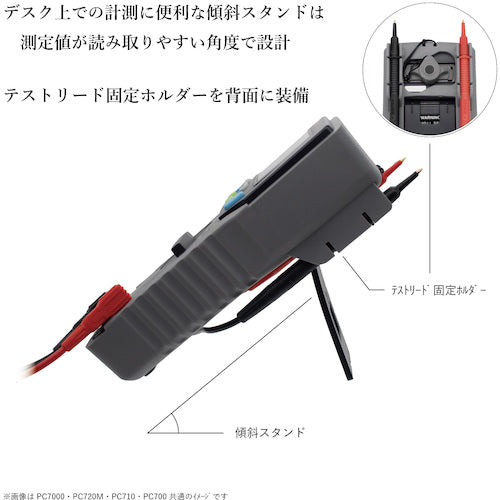

Catalog number: PC700 Features: ●Dual display is possible, including voltage and frequency. ●Data can be imported to a PC using the separately sold dedicated software and optical link USB cable. ●Complies with the new IEC. ●Minimum resolution is 0.01mV (ACV and DCV only). ●Complies with CE. ●Complies with international safety standard CAT.[3]600V ●Supports high-speed response bar graphs. ●Maximum display: 9999 counts ●Includes a magnet for hanging from a metal surface Applications: ●For research and development. ●For electronics work. ●For electrical work and facility maintenance. Specifications: ● DC voltage (V): 999.9 ● AC voltage (V): 999.9 ● DC current (A): 10 ● AC current (A): 10 ● Resistance (Ω): 60M ● Detection method: Average value rectification (MEAN) ● Continuity check: Buzzer at 20Ω to 300Ω ● Calibration documents: Supported ● Power supply (V): 1 stacked 9V dry battery (6F22) (included) ● Width (mm): 86 ● Depth (mm): 52 ● Height (mm): 184 ● Power supply: 1 stacked 9V dry battery (6F22) (included) ● Frequency Number (Hz): 15.00-50.00k●Capacitor capacity: (F)25.00m●Duty ratio: 0-100.0%●Diode test: Open voltage less than 3.5V●Maximum display (count): 9999●Detection method: Average value rectification (MEAN)●Complies with international safety standard CAT.[3]600V●Battery life 60 hours●Temperature measurement possible●Frequency (multiple sensitivity selections possible), wide range of capacitor capacity measurement functions●Relative function with auto range (relative value display) Set contents/accessories:●Instruction manual●Test lead TL-23a●Holster H-700 Caution:●Do not use if the main unit or test lead is damaged. ●Do not hold the test pin side of the test probe beyond the flange during measurement. ●Connect the test lead to the ground side (black test lead) first, then connect the live side (red test lead). When disconnecting, first release the live side. ●Do not switch to other functions or ranges during measurement, or insert the test lead plug into other measurement terminals. ●Use fuses of the specified shape and rating.
