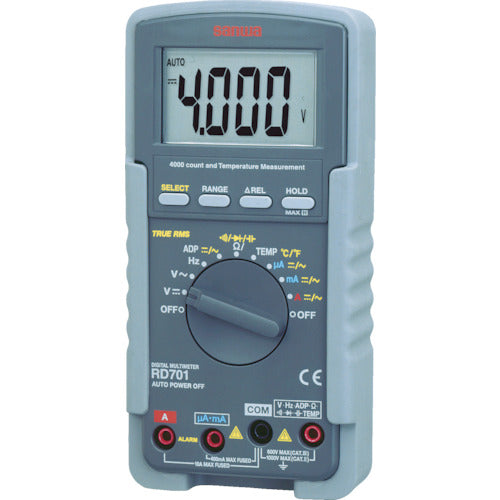

SANWA Digital Multimeter True RMS Compatible RD701 1 unit

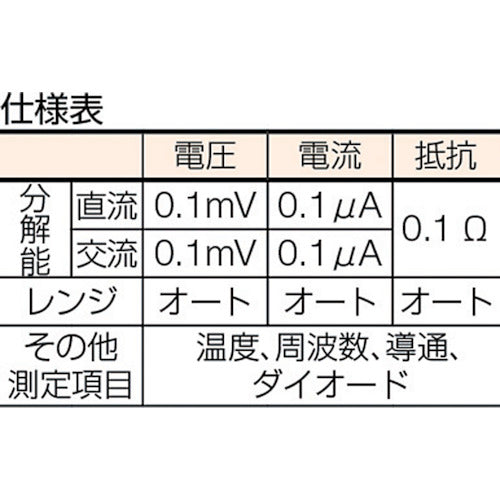

Catalog number: RD701 Features: ● Direct temperature reading (K-type sensor included) ● Large, easy-to-read LCD display ● Equipped with MAX recording function ● Large, easy-to-read LCD display ● CE-compliant ● Supports high input impedance of 1000MΩ with little loss in voltage measurement ● Maximum display: 4000 counts ● True RMS measurement method ● Disableable auto power-off function that activates after about 30 minutes ● Equipped with a buzzer to warn of incorrect insertion into the current-only terminal Applications: ● For research and development. ● For electronics work. ● For building maintenance. ● For facility preservation maintenance. Specifications: ● DC voltage (V): 1000 ● AC voltage (V): 1000 ● DC current (A): 10 ● AC current (A): 10 ● Resistance (Ω): 40M ● Detection method: True RMS rectification (RMS) ● Continuity check: Buzzer sounds at 20 to 120Ω or less Open voltage: less than 0.4V●Calibration documents: Supported●Power supply (V): 1 x stacked 9V dry battery (6F22) (included)●Width (mm): 87●Depth (mm): 55●Height (mm): 179●Power supply: 1 x stacked 9V dry battery (6F22) (included)●Width (mm): 87●Depth (mm): 55●Height (mm): 179●Continuous use time (h): Approximately 150 hours●Maximum display (count): 4000●Capacitor (F): 3000μ●Temperature (℃): -20 to 300●Frequency (Hz): 1M●Diode test: Open voltage less than 1.6V●High input impedance 1000MΩ●Temperature measurement possible●Frequency measurement up to 1MHz possible●New model fuse specification 1: 0.63A/500V IR50kA Φ6.3×32mm ceramic tube (F1198) ● New model fuse specification 2: 12.5A/500V IR20kA Φ6.3×32mm ceramic tube (F1199) ● Old model fuse specification 1: 0.63A/250V IR1.5kA Φ5.2×20mm ceramic tube (F2019) ● Old model fuse specification 2: 12.5A/500V IR20kA Φ6.3×32mm ceramic tube (F1199) ● Detection method: True RMS (RMS) Set contents/accessories: ● Test lead (TL-23a) ● K-type thermocouple sensor (K-250PC) ● Holster (H-50) ● Instruction manual Caution: ● Do not use if the main unit or test lead is damaged. ● During measurement, do not hold the test pin side of the test probe beyond the flange. ●Connect the grounded side of the test lead (black test lead) first, then connect the live side (red test lead). When disconnecting, remove the live side first. ●During measurement, do not switch to another function or range, or insert the test lead plug into another measurement terminal. ●Use fuses of the specified shape and rating.
