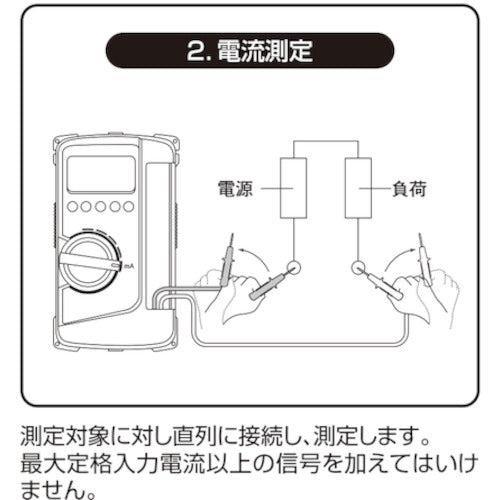

Catalog number: CD800A Features: ●Integrated case for easy carrying and storage. ●Comes with a protective cover that doubles as a stand. ●CE standard. ●Safety standard: IEC61010-1 CAT. [3] 600V compliant. ●Conductivity range is 0.4V applied voltage low power ohms. ●Frequency measurement (sine wave AC only). ●Inside of the cover has a square chip fixed resistor measurement assistant function. ●Data hold function, range hold function. ●Capacitor capacity measurement function (aluminum electrolytic capacitors with large leakage current cannot be measured). ●Display count: 4000 counts Applications: ●For electrical work and facility maintenance. ●For equipment maintenance. ●For electronic work. Specifications: ● DC voltage (V): 600 ● AC voltage (V): 600 ● DC current (A): 0.4 ● AC current (A): 0.4 ● Resistance (Ω): 40M ● DC current (mA): 400 ● AC current (mA): 400 ● Detection method: Average value rectification (MEAN) ● Continuity check: Buzzer sounds at 10Ω to 120Ω or less Open circuit voltage: Approx. 0.4V●Calibration documents: Supported●Power supply (V): 2 AA batteries (R6) (monitor batteries included)●Width (mm): 104●Depth (mm): 46●Height (mm): 176●Power supply: 2 AA batteries (R6P) (included)●Continuous use time (h): Approx. 500 hours●Maximum display (counts): 4000●Capacitor capacity (F): 100μ●Frequency (Hz): 100k●Duty ratio: 20-80%●Diode test: Open circuit voltage 1.5V●Maximum display: 4000 counts●Integrated case for easy portability●Battery life 500 hours●Conductivity range is applied voltage 0.4V●CE standard product●Fuse specifications: 0.5A/250V Φ5×20mm ceramic tube (F1176)●Test lead length 70cm●Test lead pin tip 19mm Set contents/accessories:●Instruction manual Caution: ●Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test probe from the flange during measurement. ●Connect the grounded side of the test leads (black test lead) first, then the live side (red test lead). When disconnecting, remove the live side first. ●Do not switch to another function or range or insert the test lead plug into another measurement terminal during measurement. ●Use fuses of the specified shape and rating.
