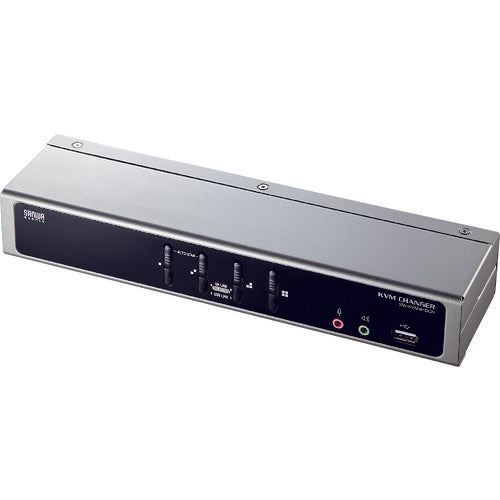

SANWA Dual Link DVI Compatible PC Automatic Switch (4:1) SW-KVM4HDCN 1 pc

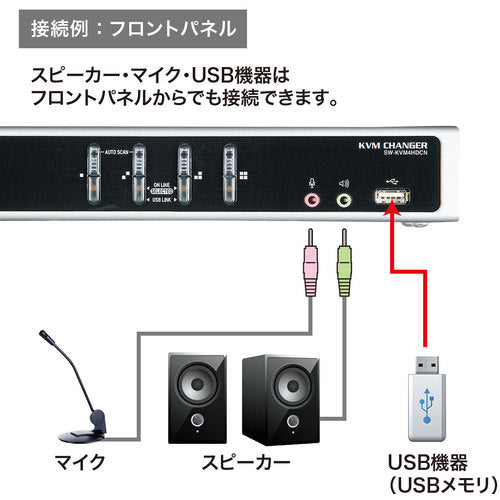

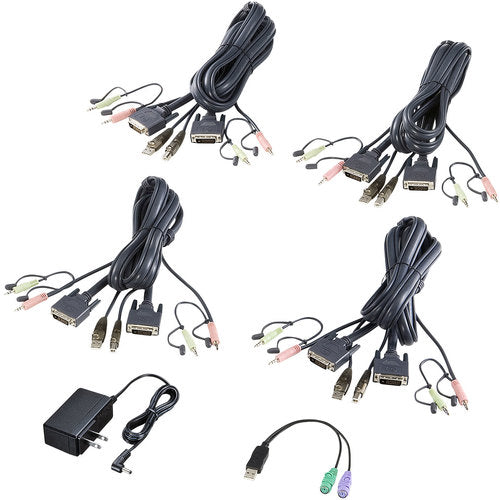

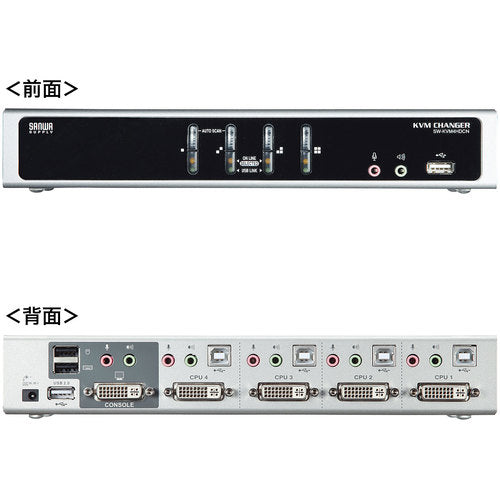

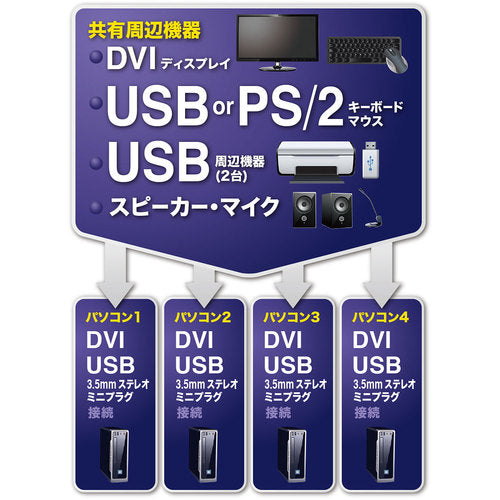

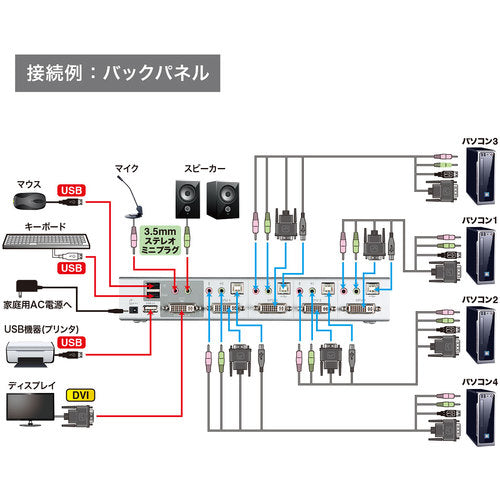

Catalog number: SW-KVM4HDCN Features: ● A high-end DVI KVM that supports both USB and PS/2 consoles, with dual-link DVI support and a USB 2.0 hub. ● You can switch between four computers using one keyboard, mouse, and display. ● Dual-link DVI support supports ultra-high resolution 2,560x1,600 (@60Hz). ● HDCP support supports full HD resolution (1920 x 1080) and wide displays of WUXGA (1920 x 1200). ● Equipped with display emulation function (EDID reading circuit). By reading the EDID of the display and saving it in the KVM, and responding to each port during DDC communication, the problem of screen resolution and screen size changing during back-booting is eliminated. ● Equipped with two USB 2.0 hubs, various USB devices such as USB printers can be switched and shared between multiple computers. In addition, individual switching is possible, so you can operate a USB device on another computer while working on another computer. ●The keyboard and mouse are compatible with both USB and PS/2 by using the included USB-PS/2 conversion cable. The mouse can be connected to USB, and the keyboard to PS/2. ●Speakers and microphones can also be shared. It also supports individual switching, so the console device and the speaker/microphone can be switched separately. You can play music from another computer while working on your computer, and check the work status by voice. ●The front panel also has speaker and microphone ports. It is easy to connect and disconnect, so it is convenient when using IP phones such as Skype. ●Since the keyboard port is emulated, you can fully start up without switching ports when restarting (rebooting). Independent switching of KVM, USB2.0 hub, and audio is possible. Specifications: Compatible computers: DOS/V desktop computers or laptops, Apple Mac series (models with USB A connector and DVI (24/29 pin) display connector) Compatible keyboards: PS/2 keyboard, USB keyboard *2, 3, 4 Compatible mice: PS/2 mouse, USB mouse *1, 4 Compatible displays: Displays with DVI (24/29 pin) female connector *This product supports both digital and analog signals. The included connection cable is a dedicated (dual link compatible) cable for digital signals. If you are using analog signals, please prepare a separate cable. *Supports both single link and dual link. Compatible resolution: Supports up to a maximum resolution of 2560 x 1600 (@60Hz) (WQXGA). Compatible speakers and microphones: Speakers and microphones compatible with 3.5mm stereo mini plugs. Switching method: Main unit button switching, hotkey switching, auto scan switching, switching sound: Beep sound can be set to ON/OFF. Power supply (V): AC adapter (DC5.3V2.4A). Size (mm): W260 x D70 x H42. The EDID of the display is read and saved in the KVM, and by responding to each port during DDC communication, the problem of screen resolution and screen size changing during back boot is eliminated. Note: Equipped with mouse emulation ON/OFF function. Quick mouse operation is possible when switching. Supports two switching methods: hotkey and main unit switching button. Only mouse and keyboard can be connected. (The display is used by connecting directly to the PC.) No software installation is required, and all functions can be used just by connecting. Equipped with auto scan function that can monitor all PCs.
