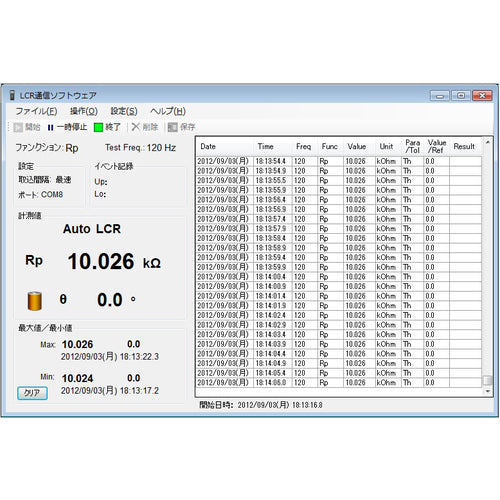

Catalog number: LCR700 Features: ●Automatic LCR function allows automatic discrimination of L/C/R/S mode/P mode. ●Handy LCR meter with PASS/FAIL discrimination function for convenient device value selection. ●Test frequency (100, 120Hz, 1kHz, 10kHz, 100kHz) and DC (resistance) can be selected, allowing measurements to be made at frequencies close to those of the actual circuit to be used. ●Automatic discrimination of resistance measurement/capacitance measurement/inductance measurement can be made using the AUTO LCR function, allowing measurements to be made even if the components are unknown. ●A wide range of measurements can be made at measurement frequencies from 1 to 100kHz. ●Incoming inspection can be easily performed by downloading the free software from our website to a PC and connecting the main unit to a dedicated USB cable (sold separately). Applications: ●For resistor component selection. ●For capacitor component selection. ●For coil component selection. Specifications: ●Resistance (Ω): 200M●Calibration documents: Supported●Power supply (V): 1 x 9V alkaline battery●Width (mm): 87●Depth (mm): 45●Height (mm): 184●Power supply: 1 x 9V alkaline battery●Coil (kH): 20●Capacitor (mF): 20●Resistance (MΩ): 200●Battery life: 35 hours●Supports five measurement frequencies: 100/120/1k/10k/100kHz●Width x Depth x Height: 87 x 45 x 184mm Set contents/Accessories: ●Clip lead (CL-700)●Holster (H-701)●Clip lead CL-700a●Holster H-701●Instruction manual Caution: ●Do not apply voltage or current from outside to the measurement terminals. ●Do not touch the terminals during measurement. ●Be sure to discharge the capacitor before measuring it. ●Normal measurements may not be possible near strong magnetic fields such as transformers or large current lines, or strong electric fields such as wireless devices. ●Do not use any AC adapters other than the dedicated AC adapter (AD-30-2).
