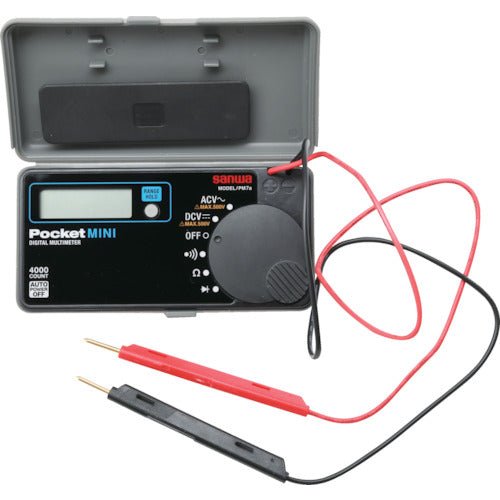

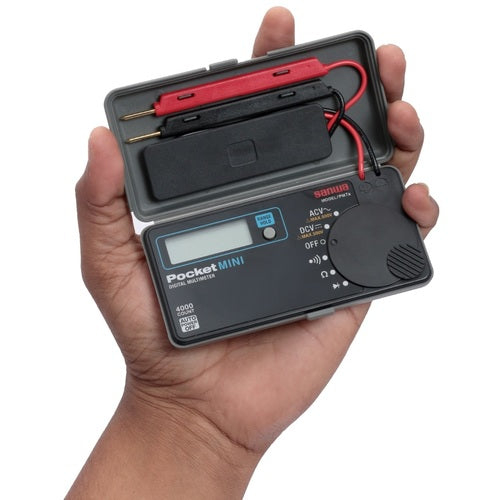

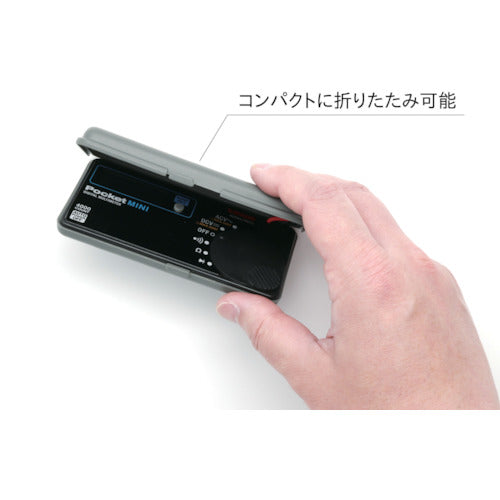

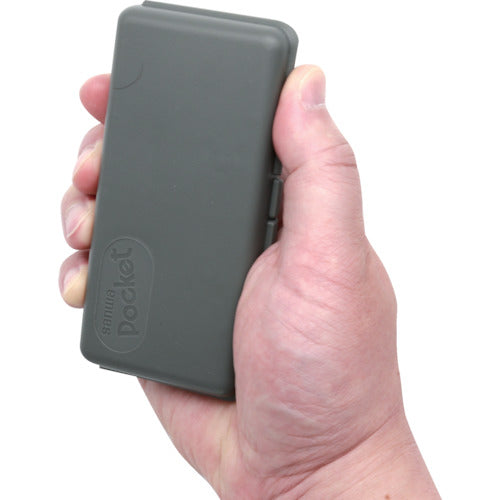

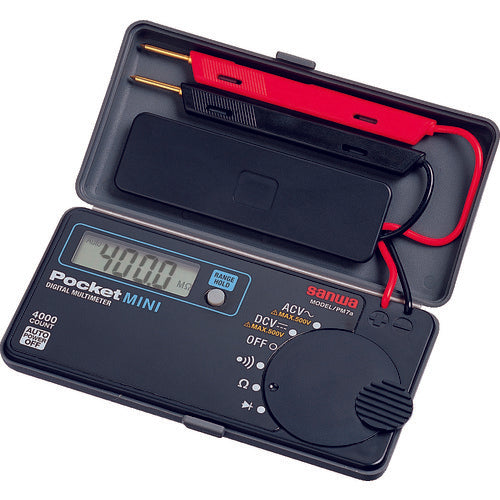

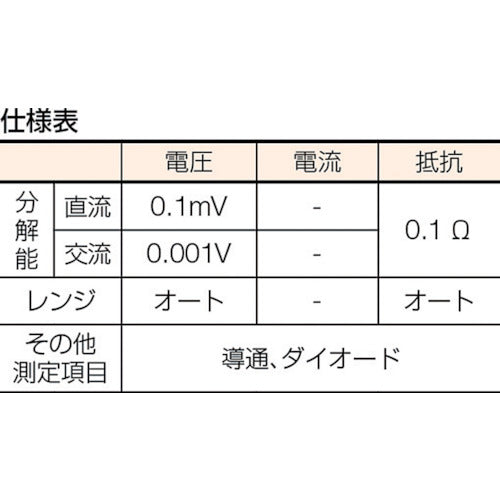

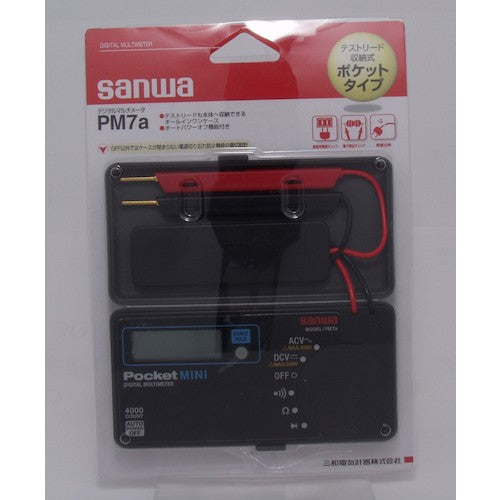

Catalogue number: PM7A Features: ● Folding pocket type. ● Mechanism designed so that the lid does not close when the power is on. ● The lid is foldable. ● Maximum display: 4000 counts ● Auto power off function that operates in approximately 15 minutes (cannot be disabled) ● Conduction range is low power ohms with an applied voltage of approximately 0.4V ● Equipped with range hold function Applications: ● For facility equipment maintenance. ● For electronic work. ● For measuring voltage on distribution boards, etc. ● For building maintenance. ● For facility preservation maintenance. Specifications: ● DC voltage (V): 500 ● AC voltage (V): 500 ● Resistance (Ω): 40M ● Detection method: Average value rectification (MEAN) ● Continuity check: Buzzer sounds at 10 to 120 Ω or less Open voltage: Approximately 0.4 V ● Calibration documents: Supported ● Power supply (V): 2 button type alkaline batteries (LR44) (included) ● Width (mm): 57 ● Depth (mm): 18 ● Height (mm): 115 ● Power supply: 2 button type alkaline batteries (LR44) (included) ● Width (mm): 115 ● Depth (mm): 18 ● Height (mm): 57 ● Continuous use time (h): Approximately 260 ● Maximum display (count): 4000 ● Integrated case ● Auto power off function ● Test lead length 50 cm ● Test lead pin tip 15 mm Set contents/accessories: ● Instruction manual Caution: ● Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test probe beyond the flange during measurement. ●Connect the grounded side of the test lead (black test lead) first, then the live side (red test lead). When disconnecting, remove the live side first. ●Do not switch to another function or range or insert the test lead plug into another measurement terminal during measurement. ●Use fuses of the specified shape and rating.
