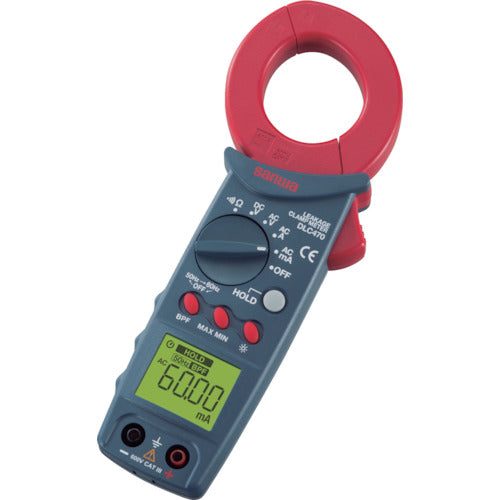

SANWA Leak Clamp Meter DLC470 1 unit

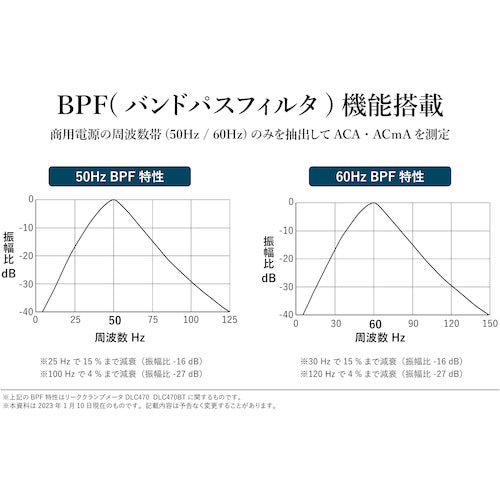

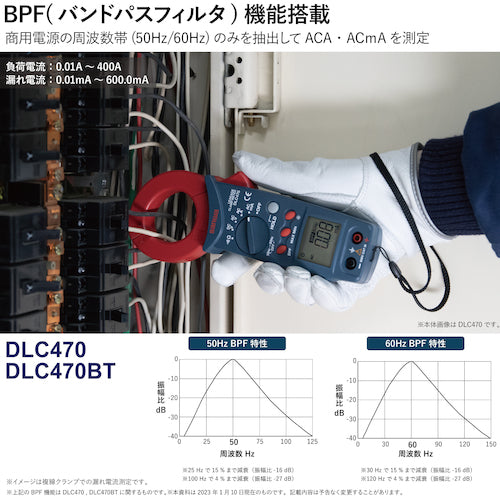

Catalog number: DLC470 Features: * Both leakage current and load current can be measured. * Equipped with a backlight, making it easy to see the measured value even in a dark place. * A leak clamp meter equipped with a switchable bandpass filter for 50Hz/60Hz frequency bands. Uses: ●Investigation of electrical leakage in equipment Specifications: ●Leakage current (mA): 600 ●AC current (A): 400 ●DC voltage (V): 600 ●AC voltage (V): 600 ●Resistance (Ω): 999.9 ●Detection method: Average value rectification (MEAN) ●Calibration documents: Supported ●Power supply (V): LR03 (AAA alkaline) x 2 ●Width (mm): 83 ●Depth (mm): 38 ●Height (mm): 206 ●Safety design compliant with IEC61010 CAT.3-600V ●Equipped with a bandpass filter that extracts only the frequency band centered on 50Hz/60Hz for ACA and ACmA ●mA measurement function with 0.01mA resolution ●MAX/MIN hold, data hold function ●Backlight installed ●Auto power off function (approx. 30 minutes) ●External connection: None ●MAX/MIN hold function ●Battery life: Approximately 42 hours when Bluetooth function is OFF (backlight off), approximately 40 hours when Bluetooth function is ON (Backlight off) ● Auto power off ● Data hold function ● Safety standard IEC61010-1 CAT.III 600 V Set contents/accessories: ● Test lead TL-21a ● Carrying pouch C-DCM660 ● Instruction manual Caution: ● This device is a leakage clamp meter for low-voltage circuits and should be used on circuits with a voltage to ground of 600 Vrms or less. ● Take care not to touch voltages of AC30Vrms (42.4 Vpeak) or DC60V or higher as they are dangerous to the human body. ● Do not use near objects that generate strong electromagnetic waves or objects that are electrically charged. ● Do not switch to other functions during measurement. ● Do not use the device or your hands when they are wet with water, etc.
