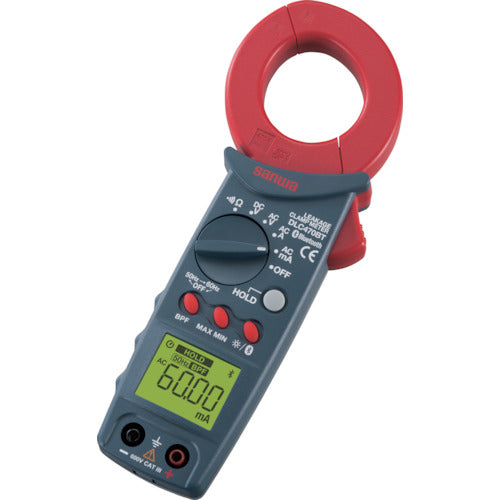

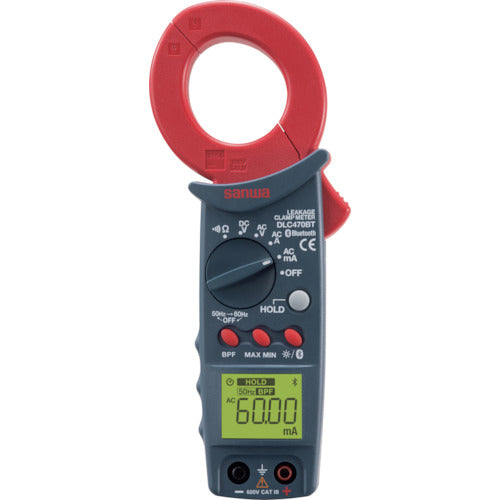

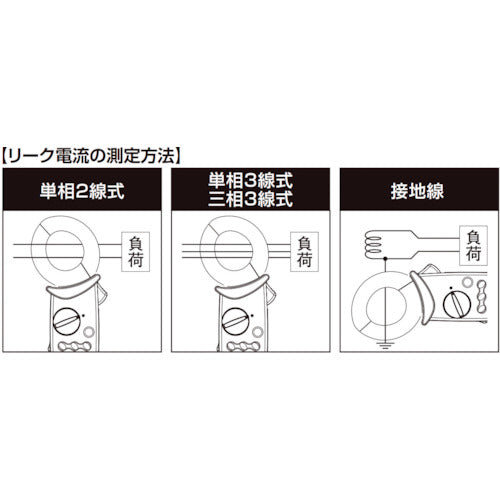

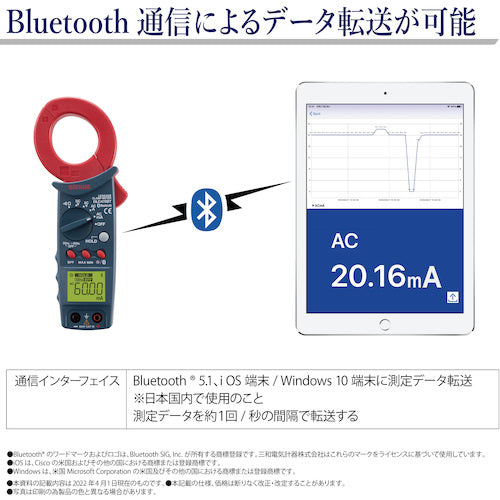

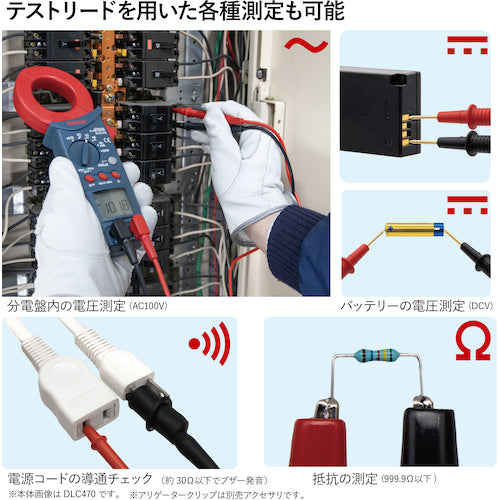

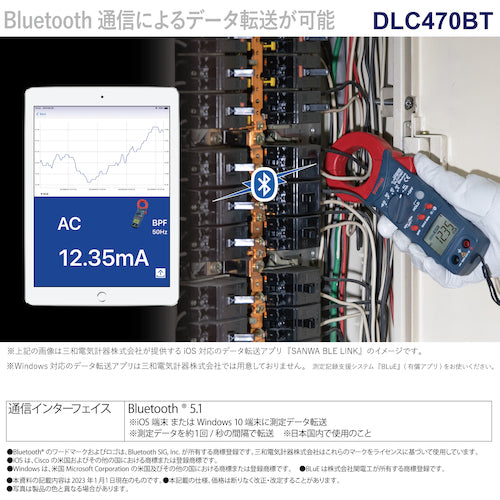

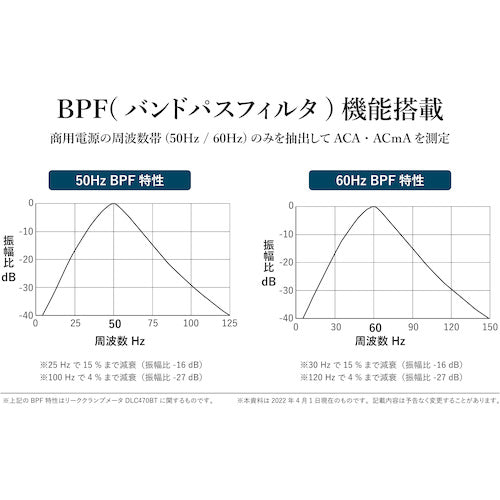

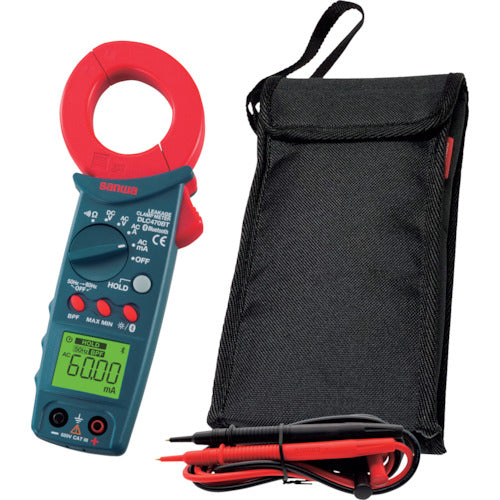

Catalogue number: DLC470BT Features: ●Data transfer possible via Bluetooth communication●Noise reduction by bandpass filter function that extracts only frequency bands centered on 50Hz/60Hz for ACA and ACmA●Can measure both leakage current and load current●Backlight makes measurement values easy to see even in dark areas●MAX hold/MIN hold function●Data hold function/auto power off function●Safety standard: IEC61010-1 CAT3.600V compliant●Count: 600 Applications: ●For measuring current and leakage current (AC) for electrical circuits, electrical equipment, etc. ●For electrical work. ●Electrical management●Maintenance Specifications:●Leakage current (mA): 600●AC current (A): 400●DC voltage (V): 600●AC voltage (V): 600●Resistance (Ω): 999.9●Detection method: Average value rectification (MEAN)●Calibration documents: Supported●Power supply (V): 2 x LR03 (AAA alkaline batteries)●Width (mm): 83●Depth (mm): 38●Height (mm): 206●Power supply: 2 x LR03 (AAA alkaline batteries)●Buzzer sounds at approximately 30Ω or less Open voltage: Approximately 0.9V●External connection: Bluetooth●Battery life: 40 hours when Bluetooth function is ON●MAX / MIN hold function●Data hold function●Auto power off●Clamp opening diameter (mm): 35●Maximum conductor diameter (mm): 40●Safety standard IEC 61010-1 CAT.III 600 V Set contents/accessories: ●Instruction manual ●Test leads (TL-21a) ●Carrying case (C-DCM660) Caution: ●This device is a leak clamp meter for low-voltage circuits. ●Use on circuits with a voltage to ground of 600 Vrms or less. ●Do not input signals that exceed the maximum rated input value. ●Do not use near objects that generate strong electromagnetic waves or are electrically charged. ●During measurement, do not hold the test lead beyond the flange on the test pin side or beyond the barrier of the clamp sensor.
