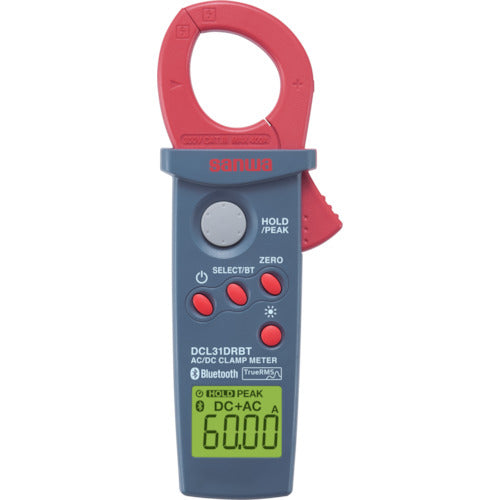

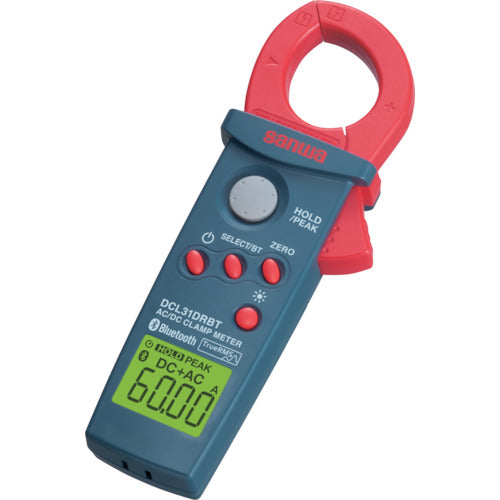

SANWA AC/DC compatible digital mini clamp meter DCL31DRBT 1 unit

Catalog number: DCL31DRBT Features: ●A dual-use DC/AC clamp meter with Bluetooth connection. ●For both AC and DC. ●Compact pocket size ●Equipped with Bluetooth 4.2, measurement data can be transferred to iOS devices and Windows 10 devices ●Uses a CT sensor that is both robust and thin ●True RMS measurement method ●Equipped with a disabling auto power off function that operates after about 15 minutes ●Equipped with peak hold function/data hold function ●Equipped with backlight function ●Equipped with DC+AC function that can measure full-wave/half-wave rectified waveforms Applications: ●For facility equipment maintenance. Specifications: ● DC current (A): 400 ● AC current (A): 400 ● Detection method: True RMS rectification ● Calibration documents: Supported ● Power supply (V): 2 AAA alkaline batteries (LR03) (included) ● Width (mm): 54 ● Depth (mm): 31 ● Height (mm): 145 ● Power supply: 2 AAA alkaline batteries (LR03) (included) ● Width (mm): 54 ● Depth (mm): 31 ● Height (mm): 145 ● Continuous use time (h): Approximately 35 ● Clamp diameter (mm): φ25 ● Maximum display (count): 6000 ● Maximum measurement conductor diameter (mm): 26 ● Equipped with Bluetooth 4.2, measurement data can be transferred to iOS devices and Windows 10 devices ● International standard IEC61010-1 CAT.3 Compliant with 300V● Equipped with DC+AC function capable of measuring full-wave/half-wave rectified waveforms● Equipped with auto power off (approx. 15 minutes) function (can be disabled)● Equipped with peak hold function/data hold function● Equipped with backlight Set contents/accessories:● C-DCL10 carrying pouch● Instruction manual Caution:● Do not use this device on circuits with a voltage to ground exceeding 300 Vrms. ● Do not input signals that exceed the maximum rated input value● Do not hold anything beyond the barrier of the clamp sensor during measurement● Do not use the Bluetooth function in areas of hospitals or other medical institutions where the use of electronic and wireless devices is prohibited. It may affect medical equipment, etc. and cause an accident. ● Be sure to check the function before each measurement
