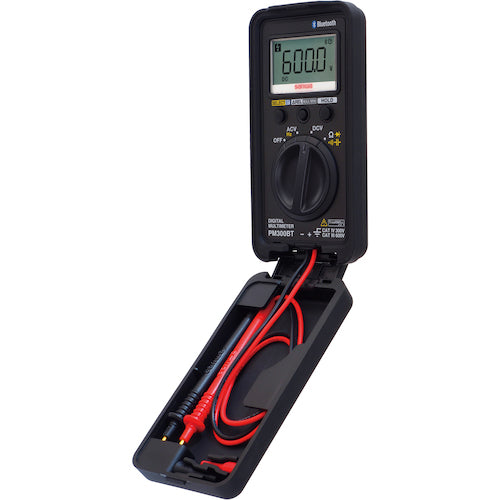

Catalog number: PM300BT Features: ● Equipped with Bluetooth communication function, measurement data can be easily transferred. ● Communication is equipped with Bluetooth 4.2. ● Complies with international safety standards CAT.［［Ｒ４］］300V/CAT［［Ｒ３］］600V. ● Can measure the frequency of sine wave AC. ● Equipped with data hold function and relative function ● True RMS measurement method ● Number of displays: 6200 counts ● Auto power save function that activates after about 15 minutes and can be canceled ● Test lead length is 50 cm ● Test lead pin tip is 18 mm Uses: ● For measuring voltage such as motors in places that are difficult to measure. ● For inspecting train equipment. Specifications: ● DC voltage (V): 600 ● AC voltage (V): 600 ● Resistance (Ω): 60M ● Detection method: True RMS measurement ● Continuity check: Buzzer sounds at 10 to 50 Ω or less Open voltage: Approximately 1.0 V ● Calibration documents: Supported ● Power supply (V): 1 lithium battery (CR2032) (included) ● Width (mm): 56 ● Depth (mm): 13 ● Height (mm): 110 ● Power supply: 1 lithium battery (CR2032) (included) ● Maximum display (counts): 6200 ● Capacitor: 600 μF ● Diode test: Open voltage 3.2 V ● Equipped with Bluetooth 4.2 ● Maximum display: 6000 counts ● Power supply: 1 lithium battery (CR2032) (included) ● Width x Depth x Height (mm): 56 x 13 x 110 ● Battery life: 30 hours when using Bluetooth function continuously Set contents / accessories: ● Instruction manual, coin battery, case Caution: ●Do not use if the main unit or test leads are damaged. ●Do not hold the test pin side of the test probe from the flange during measurement. ●Connect the grounded side of the test leads (black test lead) first, then the live side (red test lead). When disconnecting, remove the live side first. ●Do not switch to another function or range or insert the test lead plug into another measurement terminal during measurement. ●Use fuses of the specified shape and rating.
