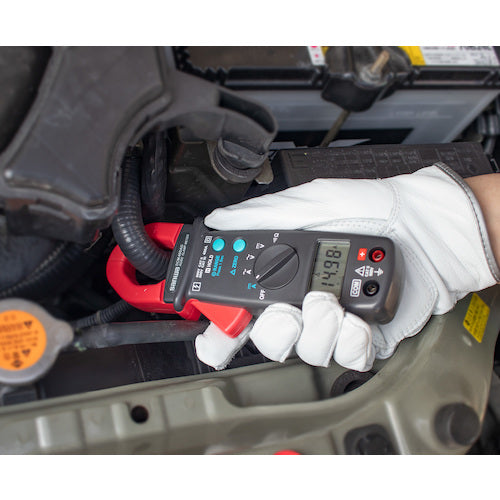

Catalog number: DCM400AD Features: ●Relative value measurement, auto power off (approx. 30 minutes), battery depletion display function. ●CE certified product. ●Complies with safety standards IEC1010 CAT［［R2］］600V, CAT［［R3］］300V. ●Can be used with both DC and AC current, making it ideal for automobile maintenance. ●Data hold function/range hold function●Relative function (relative value display)●Continuity buzzer included●Auto power off in approx. 30 minutes (cannot be canceled)●Battery depletion display function Applications: ●For automobile measurements and equipment maintenance. ●For electrical work. Specifications: ●DC current (A): 400 ●AC current (A): 400 ●DC voltage (V): 600 ●AC voltage (V): 600 ●Resistance (Ω): 400 ●Detection method: Average value rectification (MEAN) ●Calibration documents: Supported ●Power supply (V): 2 AAA alkaline batteries (LR03) (included) ●Width (mm): 50 ●Depth (mm): 28 ●Height (mm): 193 ●Power supply: 2 AAA alkaline batteries (LR03) (included) ●Clamp diameter (mm): 25 ●Continuity: Buzzer sounds at 40Ω or less Open voltage 2.9V ●Maximum display: 4000 counts ●Maximum measurement conductor diameter: 34mm ●Battery life 50 hours Set contents/accessories: ●Instruction manual ●Carrying case C-DCM400 ●Test lead TL-23a Caution: ●This is a clamp meter for low voltage. Do not use on circuits with a voltage to ground exceeding 600V. ●Do not switch to other functions during measurement. ●When connecting or disconnecting from a live conductor, wear insulating protective gear such as electrical rubber gloves. ●Do not input signals that exceed the maximum rated input value. ●During measurement, do not hold the test pin side of the test probe beyond the barrier or the end of the clamp sensor's barrier.
