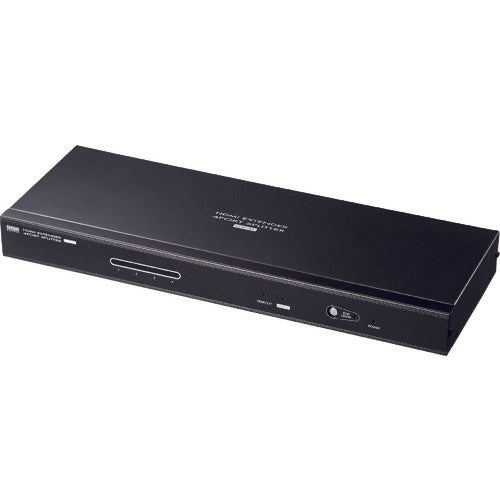

SANWA HDMI Extender (Transmitter, 4-way Distribution) VGA-EXHDL4 1 unit

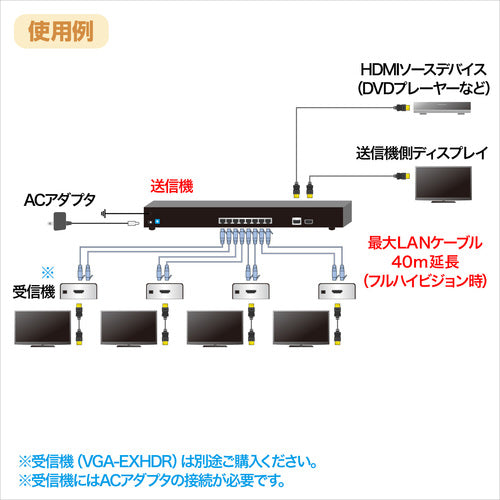

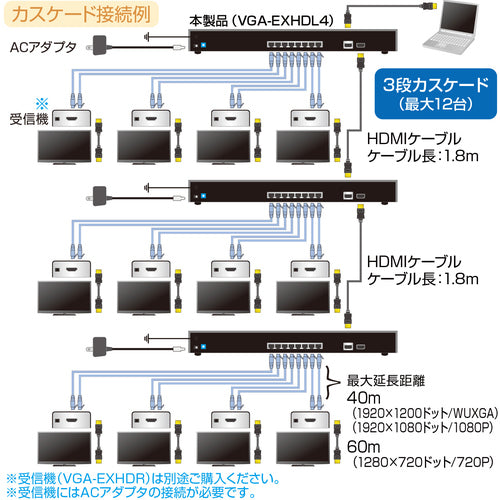

Catalog number: VGA-EXHDL4 Features: ●This HDMI extender can extend HDMI signals up to 40m at full HD (1920 x 1080) resolution, or up to 60m at 720P (1280 x 780) resolution, with 4 distributions. ●HDMI signals can be extended by connecting this product (transmitter) and the separately sold receiver (VGA-EXHDR) with two Category 6 straight cables. (A method is used to extend and transmit DDC signals and video/audio signals separately to ensure accurate device recognition.) ●High-quality HDMI image signals can be extended at the same time as high-quality audio signals. ●By using a Category 6 straight cable with a transmission frequency bandwidth of 250 MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss. ●3D signals are supported. ●1U size that can be installed in a 19-inch server rack. ●Ideal for installing only displays in environments where it is difficult to install HDMI equipment, such as factories and construction sites, and installing HDMI equipment in a separate location with a good environment. ●This product is HDCP (High-bandwidth Digital Content Protection) compliant. ●It uses a Category 6 straight cable, making it easy to handle and cost-effective. ●It also supports 3-level daisy chain connections. Specifications: Compatible devices: Video equipment, home game consoles, and computers with HDMI output terminals as standard Compatible output devices: TVs and computer displays with HDMI input terminals as standard (for connecting to transmitters and confirmation displays) Maximum display resolution: 1920 x 1200 dots (WUXGA) *Extendable up to 40m 1920 x 1080 dots (Full HD/1080P) *Extendable up to 40m 1280 x 720 dots (720p) *Extendable up to 60m Compatible LAN cable: Category 6 straight cable *3 Extension cable length: 60m (maximum) *1 HDCP: Compatible *2 Bandwidth: Up to 2.25Gbps Interface input: HDMI type A (19pin) female x 1 Output: RJ-45 female x 8 HDMI type A (19pin) female x 1 Distribution contents: 4 distribution Power consumption: 8W (maximum) Note: This product alone cannot transmit HDMI signals. A separate receiver (VGA-EXHDR) is required. ●The display must also support HDCP. ●This product uses two Category 6 straight cables. Please purchase separately. Recommended cable: Sanwa Supply
