SANWA HDMI Extender VGA-EXHD 1 piece

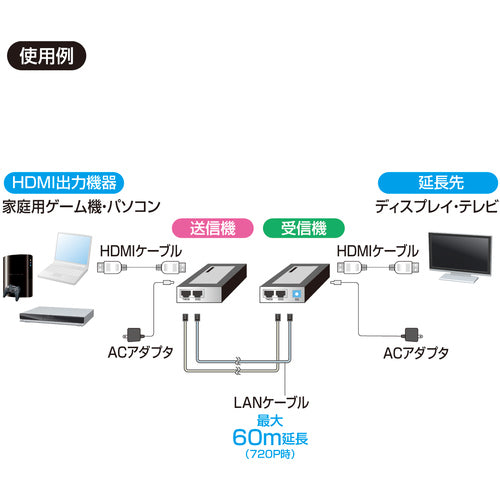

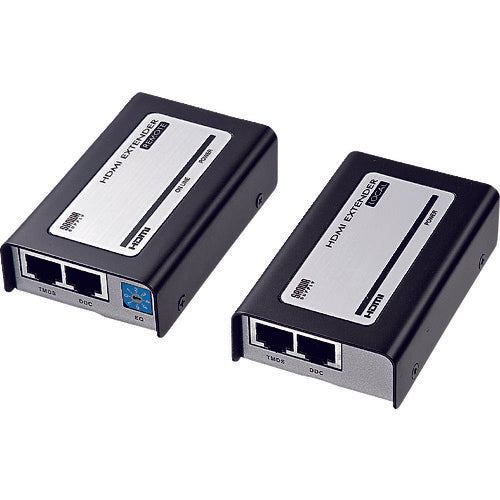

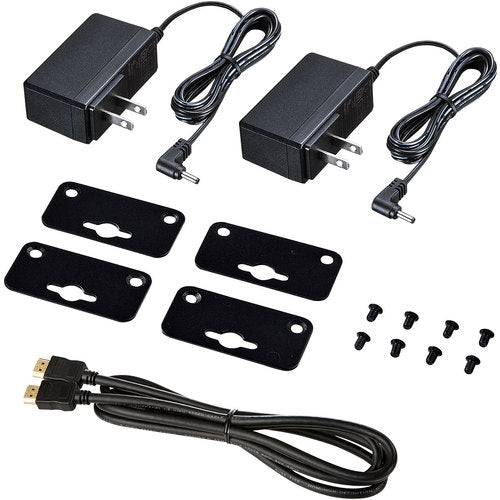

Catalog number: VGA-EXHD Features: ●This HDMI extender can extend HDMI signals up to 40m at full HD (1920 x 1080) resolution and up to 60m at 720P (1280 x 780). ●This HDMI extender can extend HDMI signals up to 40m at WUXGA (1920 x 1200 dots) / full HD (1920 x 1080 dots) resolution and up to 60m at 720P (1280 x 720 dots) resolution. ●It consists of a transmitter and receiver set, and can be extended using two Category 6 straight cables between the units. ●It can extend high-quality HDMI image signals and high-quality audio signals at the same time. ●By using Category 6 cable with a transmission frequency bandwidth of 250 MHz, high-quality HDMI signals can be transmitted over long distances with minimal signal loss. ●Since it uses Category 6 cable, it is easy to handle and has excellent cost performance. ●It supports HDMI Ver1.3b and also supports Deep Color and Dolby TrueHD. ●A wall mount kit is included, so wall mounting is also possible. ●Ideal for installing only the display in an environment where it is difficult to install HDMI equipment, such as a factory or construction site, and installing the HDMI equipment in a remote location with a good environment. ●HDCP (High-bandwidth Digital Content Protection) compatible product. Specifications: ●Interface: <Transmitter> Input: HDMI compatible A (19 pin) female x 1 Output: RJ-45 female x 2 <Receiver> Input: RJ-45 female x 2 Output: HDMI type A (19 pin) female x 1, Standard: HDMI Ver. 1.3b / DVI Ver. 1.0, HDCP: Compatible ●Compatible devices: Video equipment, home game consoles, and computers that come standard with HDMI output terminals ●Compatible output devices: TVs and computer displays that come standard with HDMI input terminals ●Maximum display resolution: 1920 x 1200 dots (WUXGA) *Can be extended up to 40m 1920 x 1080 dots (Full HD/1080P) *Can be extended up to 40m 1280 x 720 dots (1080i) *Can be extended up to 60m ●Compatible LAN cable: Category 6 straight cable, extension cable length: 60m (maximum) ●Size Transmitter (g): W90 x D55 x H24mm (body size) Receiver: W90 x D55 x H24mm (body size), Weight: Transmitter: 160g Receiver Unit: 160●Accessories: Transmitter x 1, Receiver x 1, AC adapter (DC5V2.6A) x 2HDMI cable (1.8m) x 1, Wall mount kit x 4Instruction manual (with warranty) x 1HDMI specifications (HDMIVer1.3b)●＜Audio＞DolbyDigital/DTS: Supported, DVD Audio: Supported, SACD: Supported, DlobyDigitalPlus, DolbyTrueHD: Supported, DTS-HDHighResolutionAudio, DTS-HDMasterAudio: Supported, PCM: 8ch (7.1ch)●＜Video＞Resolution: 1080p (1920 x 1020), WUXGA (1920 x 1200), Color depth: 12bit/RGB36bit, Deepcolor*Only if the HDMI input/output device to be connected supports deep color, Color gamut standard: xvYCC compatible●＜Function＞Inter-device control: Not supported, Lip sync: Not supported*The HDMI input/output device to be connected must support deep color. Note: ●Resolution/1080P・1920×1080(40m)/WUXGA・1920×1200(40m)/720p・1280×720(60m)
