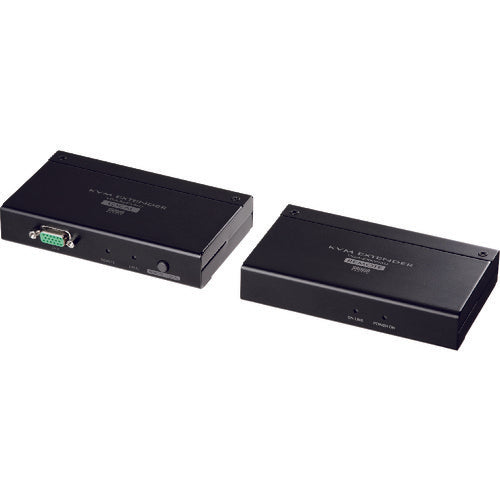

SANWA KVM Extender (for USB, set model) VGA-EXKVMU 1 piece

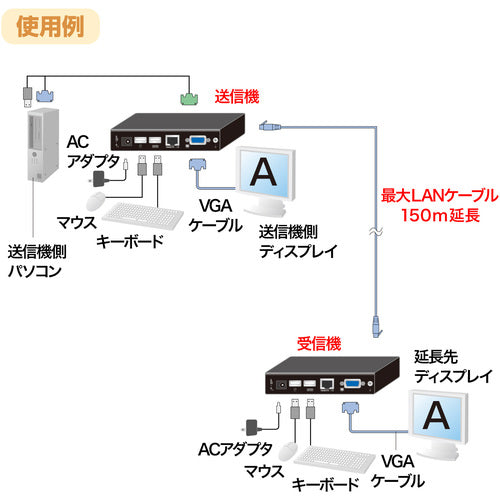

Catalog number: VGA-EXKVMU Features: ●This is a KVM extender that can extend analog display, USB keyboard, and USB mouse signals up to 150m. ●This is a USB KVM extender that can extend the analog display signal, USB keyboard, and USB mouse signal of a computer up to 150m. ●It is ideal for installing only the console in an environment where it is difficult to install the computer body, such as a factory or construction site, and installing the computer body in a good environment away from the console. ●This is a set model of a transmitter and receiver, and the units can be extended using a UTP/STP (Category 5/5e) straight cable. ●The operation console can be connected not only to the extension destination (receiver) but also to the transmitter side. It can be operated at two locations, the extension destination and near the computer body. ●Extension output at 1920 x 1080 dots (full HD) is also possible (maximum extension distance 30m. The extension distance varies depending on the resolution.) ●It can be used in combination with our KVM switch. ●A rack mount kit is included, so it can be installed in a server rack. ●RoHS compliant. Specifications: ●Windows (DOS/V) PC *Models with USB (female A connector) and mini D-sub (HD) 15-pin display connector. ●Compatible console: Multi-scan display USB keyboard and USB mouse with mini D-sub (HD) 15-pin female connector *Keyboards and mice recognized as USB 2.0 devices are not supported. *Bluetooth keyboards and mice are not supported. *Functions that require special drivers are not supported. ●Maximum display resolution: 1920 x 1200 up to 30m @ 60Hz 1920 x 1080 up to 30m @ 60Hz 1600 x 1200 up to 100m @ 60Hz 1280 x 1024 up to 150m @ 60Hz ●Compatible LAN cable: UTP/STP Category 5/5e straight cable ●Extension cable length: 150m (maximum) *The higher the resolution, the shorter the extension distance. ●Interface Transmitter Input/All-in-one connector: SPDB 17 pin (female) x 1 * VGA/keyboard/mouse signal lines integrated Output/RJ-45 female x 1 Mini D-sub (HD) 15 pin female x 1 USB keyboard port female x 1 USB2 mouse port female x 1 Receiver Input/RJ-45 female x 1 Output/Mini D-sub (HD) 15 pin female x 1 USB keyboard port female x 1 USB mouse port female x 1 ●Power consumption Transmitter: 2.13W (max.) Receiver: 2.84W (max.) ●Environmental conditions: During operation: 0 to 50°C Humidity 80% or less (no condensation) During storage: -20 to 60°C Humidity 80% or less (no condensation) ●Material: Steel ●Size Transmitter: W130 x D86.5 x H25mm (body size) Receiver: W130 x D81.5 x H25mm (body size)
