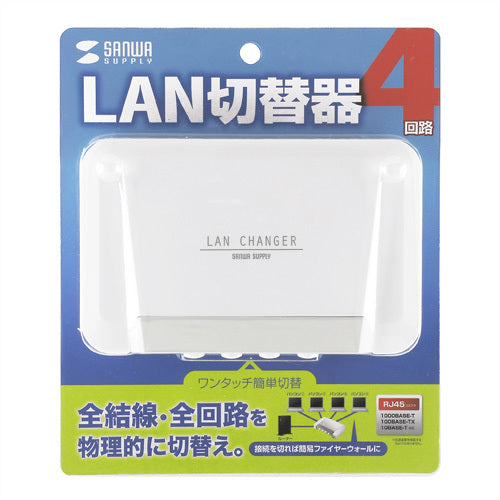

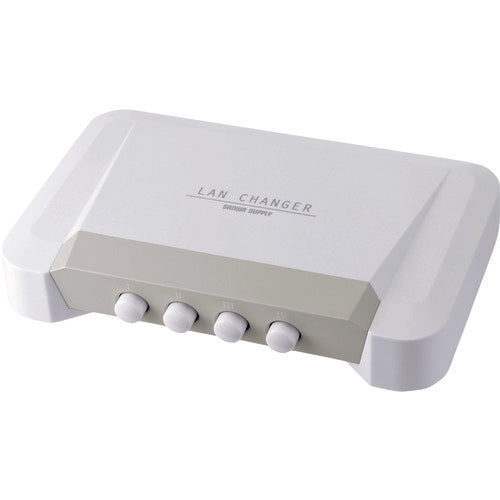

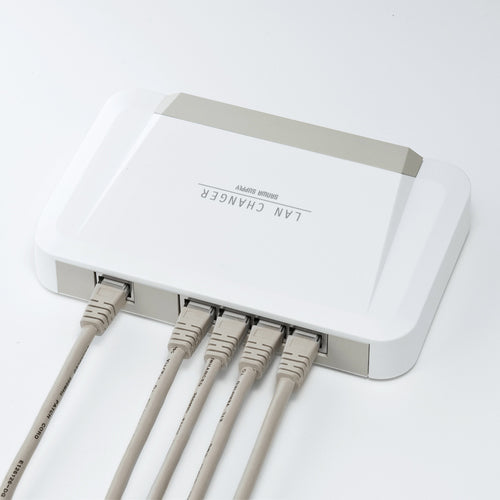

SANWA LAN switch (4 circuits) SW-LAN41 1 unit

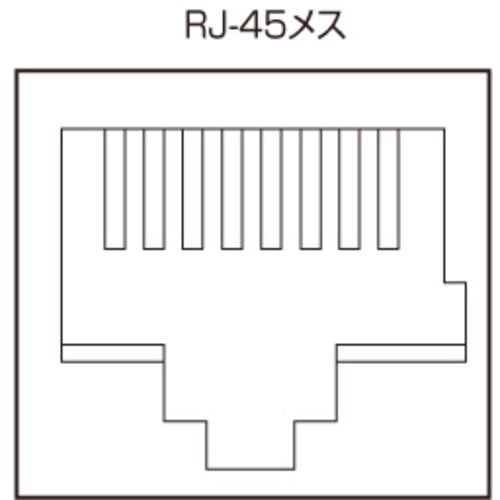

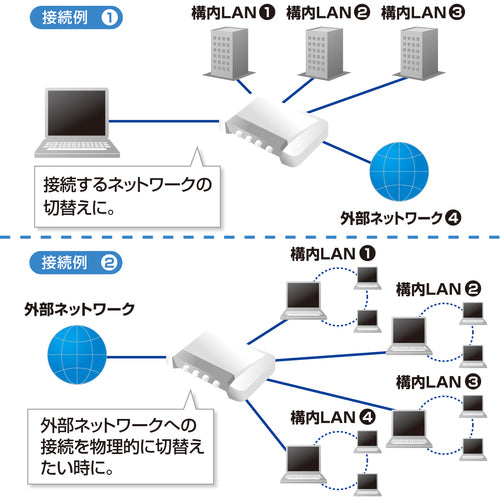

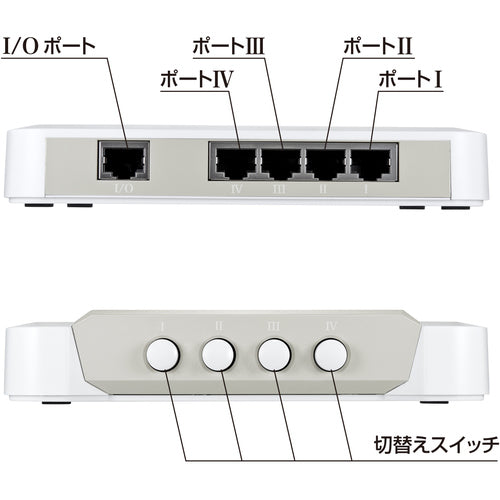

Catalog number: SW-LAN41 Features: ● Physically switches LAN lines by switching between all straight wires and all circuits. ● LAN switch that can also be used as a simple firewall. ● LAN switch that physically switches all 8 poles and 8 cores of LAN lines with all wires and all circuits. ● When switching, the LAN cable and LAN cable are simply extended with a relay adapter, so compatibility issues almost never occur. ● The trouble of manually plugging and unplugging the LAN cable is eliminated with a single switch. ● Since no LAN signals are connected to the unconnected port, it can also be used as a simple firewall. (IP address setting is required) ● Convenient for physically switching between external and internal networks, and for environments where the network is connected only when necessary. Specifications: Interface: RJ45 female x 3 (compatible with 1000BASE-T, 100BASE-TX, 10BASE-T (transmission speed is not guaranteed)) Compatible computers: DOS/V computers, Apple Macintosh (equipped with RJ45 LAN port) Switching: 4:1 or 1:4 Operating temperature: 0°C to 60°C Storage temperature: -20 to 60°C Humidity: 0 to 95% No condensation External material: ABS Size: W155 x D98 x H29.5mm (main body size) Weight: Approximately 170g Note: This product has been confirmed to work in 10BASE-T/100BASE-TX/1000BASE-T environments, but is not a LAN standard (TIA/EIA-568) product. Since a switch is inserted in the middle of the LAN cable, the results of the cable test may not be satisfactory. The use of this product may cause a decrease in speed in the circuit, but please note that this product does not guarantee or support the speed.
