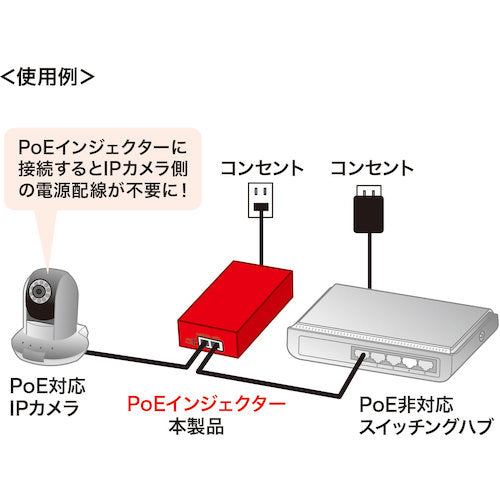

Catalog number: LAN-GIHINJ2 Features: ●This is a PoE injector that supports IEEE802.3af/at. ●You can make your network PoE-powered by simply adding it to a normal network environment. ●Signal transmission and power supply to PD (PoE-powered device) is possible with only a LAN cable. ●It supports gigabit transfer, so it is also ideal for video transfer from IP cameras, etc. ●Uses a metal case with excellent heat dissipation. ●Equipped with AUTO-MDIX function. ●Since it has a built-in power supply, it can be installed by handling only the power cable. Uses: ●To make your network PoE-powered by simply adding it to a normal network environment. Specifications: ●Number of ports: 1 ●Width (mm): 130 ●Depth (mm): 62 ●Height (mm): 36 ●Ethernet standard ●IEEE802.3 (10BASE-T) ●IEEE802.3u (100BASE-TX) ●IEEE802.3ab (1000BASE-T) ●IEEE802.3af/at ●Switching method: Store&Forward ●Transmission method: Half duplex (10Mbps/100Mbps/1000Mbps), full duplex (20Mbps/200Mbps/2000Mbps) ●Port configuration: Data port (input): 1 port, PoE/Data port (output): 1 port ●PoE-compatible port output: 30W Caution: ●Precautions when using PoE port: For PoE power supply, please select a Category 6 straight cable or a cable of 24AWG/23AWG or higher.
