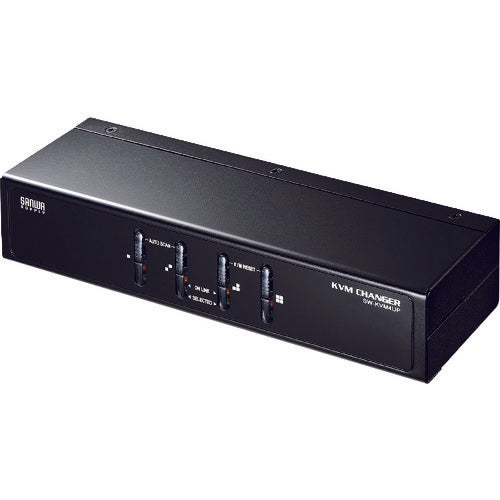

SANWA PS/2 and USB compatible PC automatic switch (4:1) SW-KVM4UP 1 unit

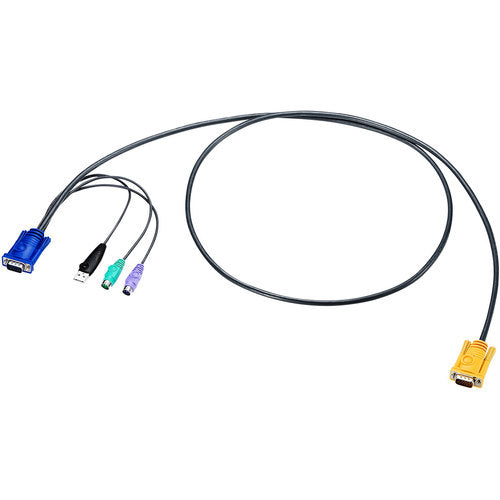

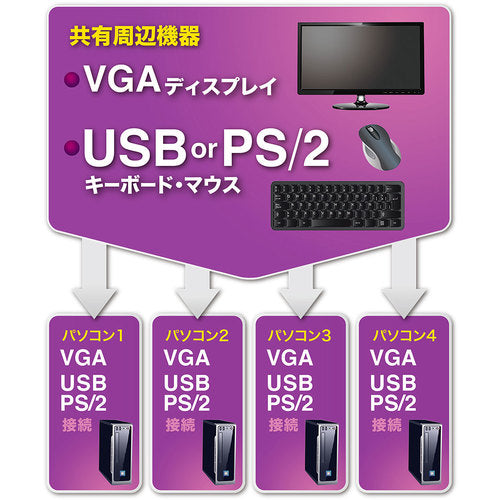

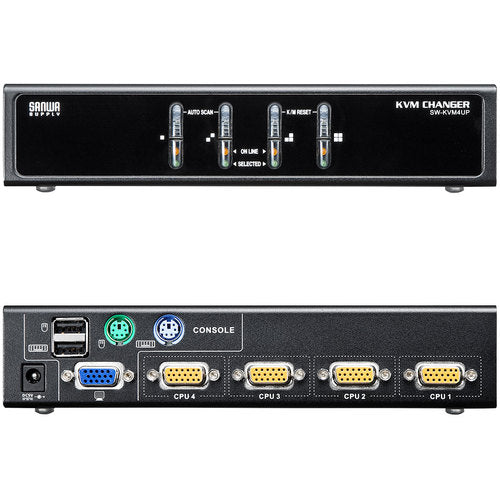

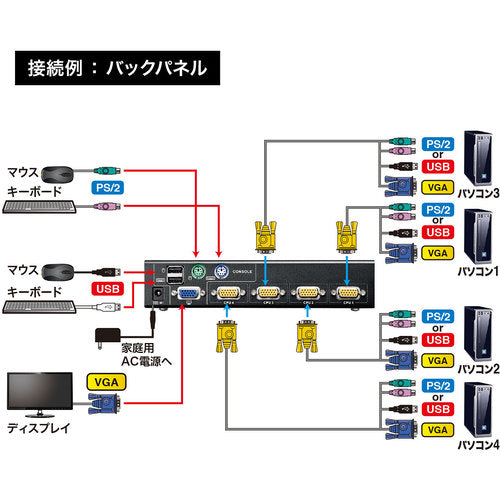

Catalog number: SW-KVM4UP Features: ● Dual interface PC automatic switch (4 ports) that supports both PS/2 and USB connections. ● Up to 4 PCs can be switched and operated with one console (keyboard, mouse, display). ● PCs can be connected via either PS/2 or USB. PS/2 and USB connected PCs can also be connected together. ● Keyboard and mouse support dual interface that can be connected via either PS/2 or USB. Cross interface connection such as USB mouse and PS/2 keyboard is also possible. ● Keyboard port emulation function. No matter which port the KVM selects, boot errors at PC startup are avoided. ● Switching can be done by button switching on the front panel or hot key switching by key input. ● High resolution up to 2048 x 1536 dots can be displayed. ● Equipped with auto scan mode that automatically switches ports at regular intervals. Ideal for checking PC operation status. ● Hot plug is supported, so there is no need to turn off the switch when adding or removing PCs, making maintenance easy. ●It uses an all-in-one connector that combines the signals of the keyboard, mouse, and display into one. It is easy to connect and looks neat. Uses: ●For automatic switching of computers. Specifications: ●Width (mm): 200 ●Depth (mm): 70 ●Height (mm): 42 ●Current consumption (mA): 250 ●Compatible computers: DOS/V desktop computers or laptops, Apple Mac series (models with USB A connector female and mini D-Sub (HD) 15pin display connector) ●Compatible keyboards: PS/2 keyboards, USB keyboards, compatible mice: PS/2 mice, USB mice, compatible displays: multi-scan displays with mini D-sub (HD) 15pin connectors ●Compatible resolution: Can display resolutions up to 2048 x 1536 dots. (DDC2B compatible) ● Compatible OS: Windows 10, 8.1, 8, 7, Vista, XP (32/64bit edition compatible) Windows Server 2012 (R2), Windows Server 2008 (R2), Windows Server 2003 (R2) Linux (CentOS uBuntu OpenSUSE) ● Switching method: Hotkey switching, auto scan switching, main unit button switching ● Power supply (V): AC adapter (DC5V1A) ● Current consumption: 250mA (maximum) ● Size: W200 x D70 x H42mm (main unit size) ● Accessories: PC connection cable (1.8m x 2, 1.2m x 2), instruction manual (with warranty) Set contents / accessories: ● PC connection cable (1.8m x 2, 1.2m x 2), AC adapter (DC5V 1A) x 1, instruction manual, warranty
