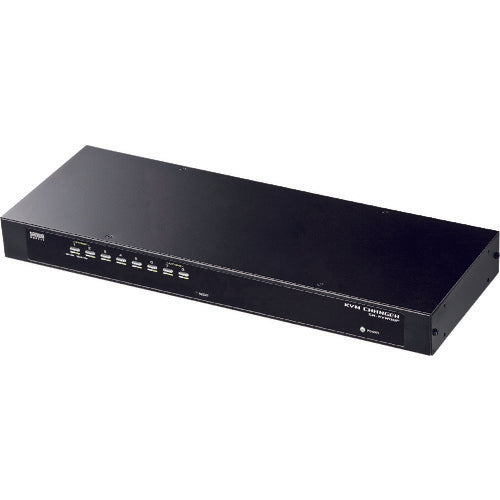

SANWA PS/2 and USB compatible PC automatic switch (8:1) SW-KVM8UP 1 unit

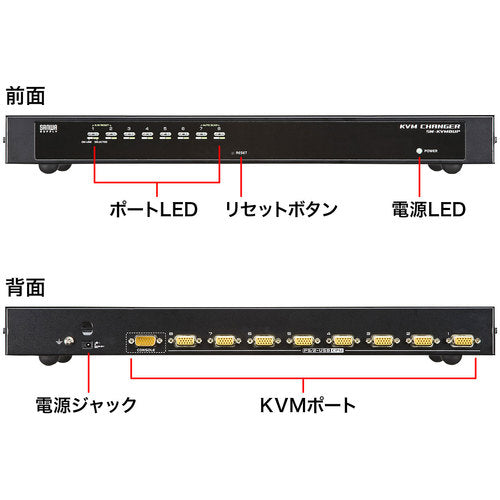

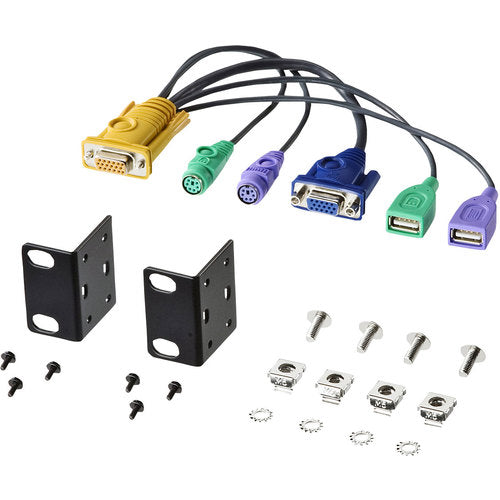

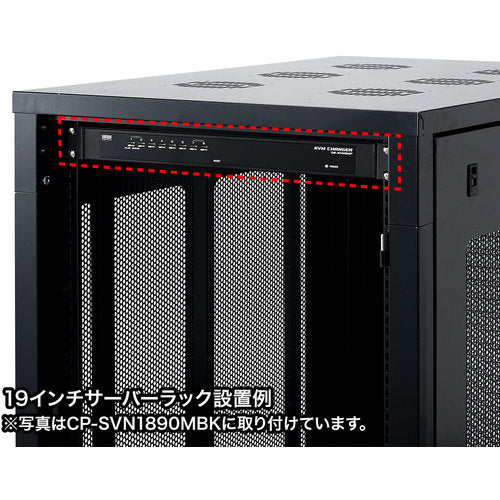

Catalog number: SW-KVM8UP Features: ● Dual interface PC automatic switch (8 ports) that supports both PS/2 and USB connections. ● Up to 8 PCs can be switched and operated with one console (keyboard, mouse, display). ● PCs can be connected via either PS/2 or USB. PS/2 and USB connected PCs can be connected together. ● Keyboard and mouse support dual interface that can be connected via either PS/2 or USB. Cross interface connection such as USB mouse and PS/2 keyboard is also possible. ● Keyboard and mouse emulation function. Avoids boot errors when starting up the PC regardless of which port the KVM selects. ● Can be mounted on a 19-inch server rack (1U size). Mounting brackets are included. ● Switching methods include front panel button switching, hotkey switching by key input, and switching operation via the OSD screen. ● Equipped with a multi-function OSD that is convenient for system management, such as limiting the OSD screen that can be operated depending on the user level, broadcast function to shut down all PCs simultaneously from the console, and 2-level password security function. ●Supports ultra-high resolution up to 2048 x 1536 dots, which allows you to make the most of the image quality of high-performance displays. ●Equipped with an auto scan mode that automatically switches ports at regular intervals. Ideal for checking the operating status of your computer. Compatible with Windows OS, MacOS, and Linux. Can be used in environments with multiple OSes. Uses: ●For automatic switching of computers. Specifications: ●Width (mm): 433 ●Depth (mm): 160 ●Height (mm): 44 ●Current consumption (mA): 460 ●Compatible computers: DOS/V desktop computers or laptops, Apple Mac series (models with USB A connector female and HD (3WAY) 15pin display connector) ●Compatible keyboards: PS/2 keyboard, USB keyboard, compatible mouse: PS/2 mouse, USB mouse ●Compatible display: Multi-scan display (analog RGB display) with HD (3WAY) 15pin female connector *DDC2B compatible ●Compatible resolution: Can display up to 2048 x 1536 dots ●Interface <For PC> All-in-one connector: SPDB 18 pin (female) x 8 *VGA/keyboard/mouse signal lines integrated <Console side> All-in-one Connector: SPDB 18 pin (male) x 1 * VGA / keyboard / mouse signal lines are integrated ● Switching method: Main unit select switch switching, hot key switching, OSD switching, auto scan mode switching ● Power supply (V): AC adapter (DC 5.3 V / 2.4 A), current consumption: 460 mA (maximum), power consumption: 2.44 W (maximum) ● Size (g): W 433 x D 160 x H 44 mm, weight: 1.89 K ● Accessories AC adapter (5.3 V / 2.4 A) x 1 Dedicated cable for console connection (0.27 m) x 1 Rack mount kit (bracket x 2, screw x 6) Instruction manual (with warranty) x 1 Ground wire (ground wire) Rubber feet x 4 Rack fixing screws x 4 Rack fixing nuts x 4 Rack fixing washers x 4 ● Adopts an all-in-one connector that combines the signals of the keyboard, mouse, and display into one. It is easy to connect and looks neat. Set contents/accessories: ●AC adapter (5.3V/2.4A) x 1, dedicated cable for console connection (0.27m) x 1, rack mount kit (bracket x 2, screws x 6), instruction manual, warranty, ground wire (ground wire/approx. 1.2m), rubber feet x 4, rack fixing screws x 4, rack fixing nuts x 4, rack fixing washers x 4 Note: ●It may not be usable depending on the kernel version and distribution specifications. ●This product does not come with a connection cable to a PC. Please purchase a connection cable separately according to the connection connector.
