SDC Stainless Steel Anti-Corrosion Bolt SB16085 1 pc

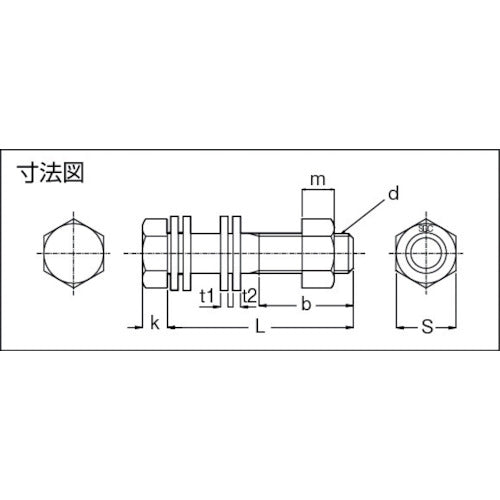

Catalog number: SB16085 Features: ● Prevents pitting corrosion that occurs in seawater and chlorine-based solutions. ● Prevents galvanic corrosion caused by dissimilar metal contact corrosion and stray currents. ● Reliably prevents seizing, the biggest drawback of stainless steel bolts and nuts. ● Excellent workability in dry conditions. Applications: ● Prevents galvanic corrosion caused by dissimilar metal contact (stainless steel pipes and iron pipes, etc.). Specifications: ● Dimension (mm) d: M16 ● Dimension (mm) L: 85 ● Dimension (mm) b: 38 ● Dimension (mm) k: 10 ● Dimension (mm) m: 13 ● Dimension (mm) S: 24 ● Dimension (mm) t1: 3 ● Dimension (mm) t2: 3 ● Practical torque coefficient value 0.12 to 0.22 (can be tightened in the same way as iron bolts) ● Passed inspection by the Japan Water Works Association Materials/Finish: ● Bolts, nuts, and flat washers: Stainless steel (SUS304)/fluorine-based acrylic resin coating ● Insulating resin washers: Glass fiber-reinforced epoxy resin ● Paint protection sleeve: Polyvinyl chloride heat shrink tubing
