SDC Stainless Steel Current Insulation Bolt SZ16085 1 pc

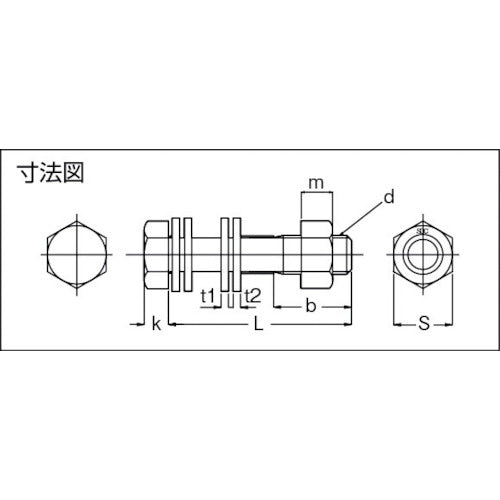

Catalog number: SZ16085 Features: ● Has an insulating effect that can withstand 2200V AC (guaranteed 220V). ● Reliably prevents the biggest drawback of stainless steel bolts and nuts, which is seizing and sticking. ● Excellent workability in dry conditions. ● Hexagonal bolt type with excellent construction properties. ● Smoothly enters the bolt hole even with a sleeve on the body. Applications: ● For insulating stray currents in water pipe bridges attached to railway bridges, pump rooms, etc. Specifications: ● Dimension (mm) d: M16 ● Dimension (mm) L: 85 ● Dimension (mm) b: 31 ● Dimension (mm) k: 10 ● Dimension (mm) m: 13 ● Dimension (mm) S: 24 ● Dimension (mm) t1: 3 ● Dimension (mm) t2: 3 ● Practical torque coefficient value 0.12 to 0.22 (can be tightened in the same way as iron bolts) Material/Finish: ● Bolt: Stainless steel (SUS304) ● Nut and flat washer: Fluorine-based acrylic resin coating ● Insulating resin washer: Glass fiber reinforced epoxy resin ● Insulating lining: Ethylene propylene rubber
