SHINOHARA Panel LED lighting (with terminal block) LC-2005TBWG 1 piece

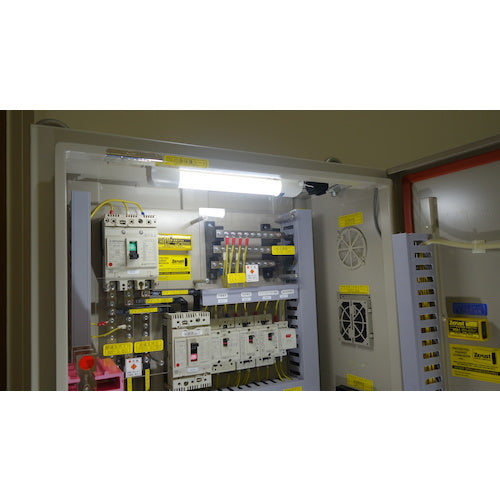

Catalog number: LC-2005TBWG Features: ● Mounting pitch of 280 mm, suitable for switching from 10W fluorescent lamps. ● Lightweight because it does not use metal or glass, and safe against vibration during transportation and shock during installation. ● Small and simple design saves space inside the panel. ● Withstands AC 2000V/min, suitable for use inside the panel. ● LED device used is manufactured by Nichia Corporation. ● Comes with a convenient terminal block. (Compatible wire diameter: 0.25-45φ) ● Suitable for replacing 10W and 20W fluorescent lamps. ● Added a mounting pitch of 538 mm! ● Terminal block can be selected from three types: 3-pole screw terminal, 2-pole/3-pole plug terminal! ● Use for panel lighting such as distribution boards, control panels, etc. Applications: ● For panel lighting such as distribution boards, control panels, etc. Specifications: ● Brightness (lm): 500 ● Width (mm): 37.8 ● Length (mm): 338 ● Total length (mm): 338 ● Power consumption (W): 5 ● Color temperature (K): 5000 ● Type: 2-pole plug-in terminal type ● Light source color: Daylight white ● Height (mm): 35.3 ● Installation specifications: Wire diameter 0.5 to 4 sq ● Irradiation angle (°): 110 ● Center illuminance (lx): 100 ● Rated life (hours): 20000 ● Voltage (V): AC100 to 240 ● Power supply (V): AC100 to 240 ● Withstand voltage 2000V/min Operating temperature -20℃ to +50℃ ● LED light life: Approximately 40000 hours at 25℃●Ambient temperature during use: -20℃ to +50℃ (no freezing or condensation)●Reference illuminance: Approximately 100Lx (1m directly below)●Rated voltage: AC100V to 240V (±10%) 50/60Hz●Illumination angle: Approximately 110°●Insulation resistance: 100MΩ or more at DC500V megger●Replaces 10W fluorescent lamps; installation pitch 280mm●Color temperature: 5000k●Light source color: Daylight white●RoHS compliant Material/Finish:●Polycarbonate
