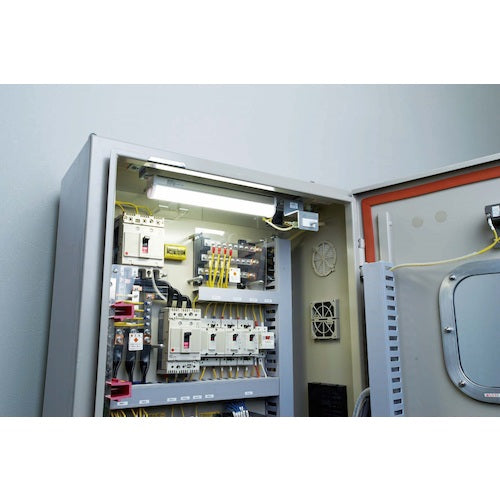

SHINOHARA LED lighting for panel (with terminal block) CLED-1004TB2Y 1 piece

Catalog number: CLED-1004TB2Y Features: ●Achieves approximately 1.5 times the brightness of a fluorescent lamp (FL10W). ●Compact and simple design makes it easy to install inside a panel and lightweight. ●Consumes approximately half the power compared to conventional fluorescent lamps. ●The LED device used is manufactured by Nichia Corporation. ●The integrated terminal block makes the unit smaller and lighter! ●You can choose from two types of terminal block: screw terminals and plug-in terminals. ●Use for panel lighting applications such as distribution boards, switchboards, and control panels. Applications: ●For panel lighting applications such as distribution boards, switchboards, and control panels. Specifications: Brightness (lm): 600 Width (mm): 42 Length (mm): 345 Total length (mm): 345 Power consumption (W): 4.5 Color temperature (K): 5000 Type: 2-pole screw terminal type Light source color: Daylight white Height (mm): 41 Installation specifications: Terminal diameter M3.5 Beam angle (°): 160 Center illuminance (lx): 150 Rated life (hours): 40000 Voltage (V): AC100-240 Power supply (V): AC100-240 Withstand voltage 1500V/min Operating temperature -20℃ to +50℃ LED light life: Approximately 40000 hours at 25℃●Ambient temperature during use: -20℃ to +50℃ (no freezing or condensation)●Reference illuminance: Approximately 150Lx (1m directly below)●Rated voltage: AC100V to 240V (±10%) 50/60Hz●Illumination angle: Approximately 160°●Insulation resistance: 100MΩ or more at DC500V megger●Replaces 10W fluorescent lamps●Color temperature: 5000k●Light source color: Daylight white●RoHS compliant Material/Finish:●Aluminum●Polycarbonate
