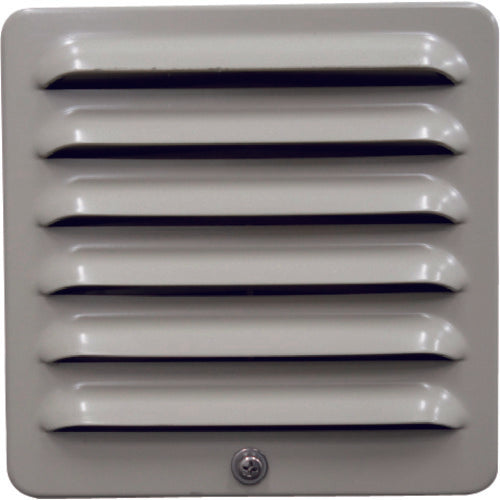

SHINOHARA Thin-type anti-jet gallery fan GTS-12W-F2 1 unit

Catalog number: GTS-12W-F2 Features: ●The slim design has achieved a significant reduction in the depth dimension. ●Filter maintenance work can be done from the front side. ●Comes with an exhaust fan. ●Use as a ventilation opening part for distribution boards, control panels, operation panels, cubicles, etc. ●A significant reduction in the depth dimension has been achieved while maintaining the same protection class (IP45) as conventional products. Space saving is achieved. ●Due to the effect of the inner parts, the filter surface is not easily exposed to rain and wind, so the ventilation capacity of the filter is not reduced by a water film even in rainy weather. ●Filter maintenance work can be done from the front side. Applications: ●For panels installed outdoors where it is exposed to harsh conditions such as rain and wind. Specifications: ● Shape: 1 row ● Height (mm): 160 ● Width (mm): 160 ● Depth (mm): 59 ● Panel cut dimensions Height x Width (mm): 130 x 130 ● Fan voltage (V): AC200 ● Type: Front filter replacement type ● Drilling pitch Height x Width (mm): 140 x 140 (φ6 x 4) ● Width (mm): 160 ● Included fan_Model number: Sanyo Denki 109S008 ● Front opening area (［［CM2］］): 60 ● Thickness (mm): Outer louver: 1.5, filter case: 1.2 ● Outer louver mounting screw: Pan flat W/nylon W built-in M5 ● Maximum airflow (［［M3］］/min)_50/60Hz: 0.58/0.67 ● Belleville spring nut: M6 ● Color: Outer louver: 5Y7/1 painted (semi-gloss), filter case: 5Y7/1 Painted●Selling unit (units): 2●Outer louver, inner louver, dust filter, filter case, waterproof packing, ventilation fan●Fan included●RoHS compliant●Maintenance on the front●AC200V 1 unit Material/Finish:●Outer louver: SUS304●Inner louver: Polypropylene (Flame retardant: UL94 V-0)●Dust filter: Non-woven fabric filter Note:●For installation, mounting holes are required in addition to panel cuts. Please contact us separately.
