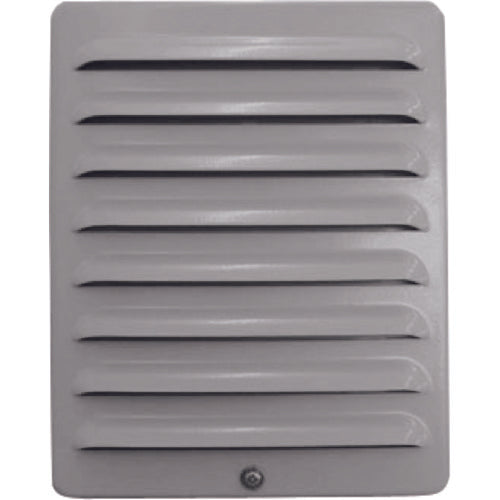

SHINOHARA Thin-type Splash-proof Gallery GTS-15W 1 unit

Catalog number: GTS-15W Features: ●The slim design has achieved a significant reduction in depth. ●Filter maintenance work can be done from the front side. ●Please use it as a ventilation opening part for distribution boards, control boards, operation panels, cubicles, etc. ●A significant reduction in depth while maintaining the same protection class (IP45) as conventional products. Space saving is achieved. ●Due to the effect of the inner parts, the filter surface is not easily exposed to rain and wind, so the ventilation ability of the filter is not reduced by a water film even in rainy weather. ●Filter maintenance work can be done from the front side. Applications: ●For panels installed outdoors where it is exposed to harsh conditions such as rain and wind. Specifications: ●Shape: 1 row ●Height (mm): 250 ●Width (mm): 200 ●Depth (mm): 16.5 ●Panel cut dimensions Height x Width (mm): 210 x 160 ●Drilling pitch Height x Width (mm): Pitch from corner to center 113.5 x Pitch from corner to center 88.5 (mm) mm (φ7 x 8) ●Color: Beige (5Y7/1) ●Width (mm): 200 ●Front opening area (cm2): 95 ●Thickness (mm): Outer louver: 1.5, filter case: 1.2 ●Outer louver mounting screw: Pan flat W/nylon W built-in M5 ●Bell spring nut: M6 ●Selling unit (units): 1 ●Outer louver, inner louver, dust filter, filter case, waterproof gasket ●RoHS compliant ●Maintenance front ●No fan Material/Finish: ●Outer louver: SUS304 ●Inner louver: Polypropylene (Flame retardant: UL94 V-0) Dust filter: Non-woven fabric filter Note: For installation, mounting holes are required in addition to panel cuts. Please contact us separately.
