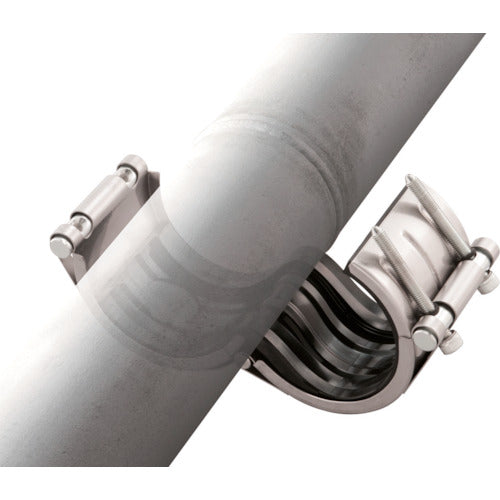

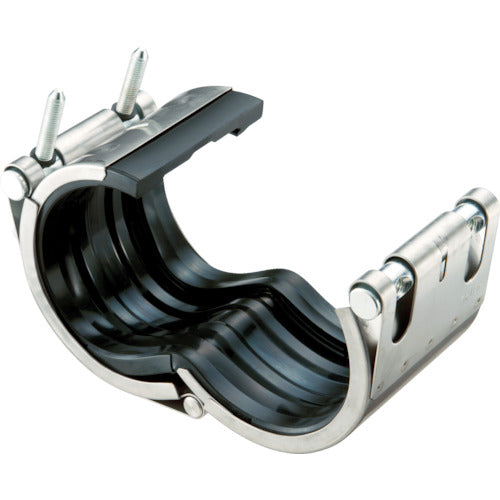

Catalog number: C-150NC Features: ●●Repairs leaks from pinholes in welded or corroded straight pipes. ●Can be installed without cutting off the water supply. ●Can be used without stopping the flow of fluid. ●Lightweight and one-piece construction means no parts will fall off, making installation safe. Applications: ●For repairing various types of piping. Specifications: ●Nominal diameter A: 150 ●Nominal diameter B: 6 ●Casing width (mm): 106.0 ●Rubber lip spacing (mm): 60 ●Tightening bolt hex hole size (mm): 8 ●Standard torque value (N・m): 20 ●Compatible pipe outer diameter (mm): 165.2 ●Compatible fluids: oil, gas, water ●Compatible piping: carbon steel pipes for piping/VLP/PLP/stainless steel pipes/steel pipe size PE pipes ●Fluid temperature: -20 to 80℃ ●Operating pressure: liquid/1.0MPa, gas and other gases/0.7MPa Material/Finish: ●Casing: stainless steel (SUS304) ●Bolts: chrome molybdenum ●Rubber: NBR
