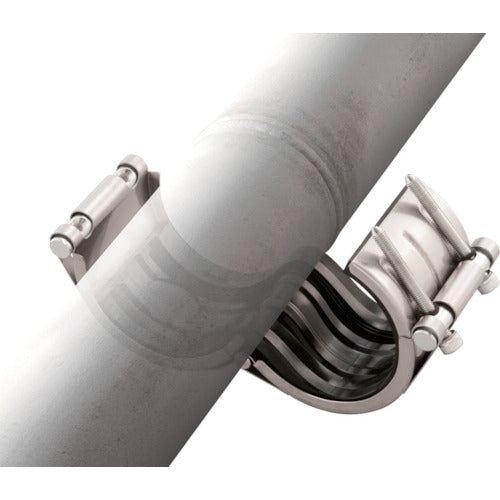

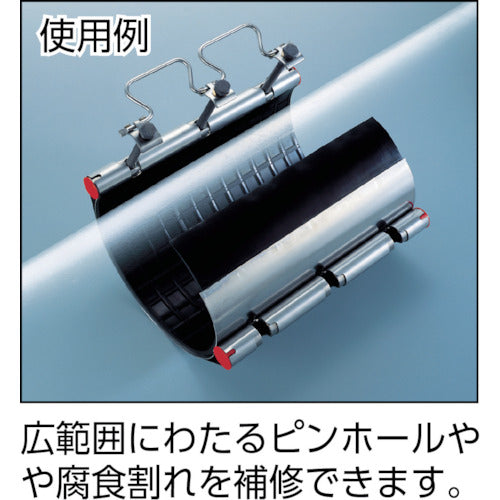

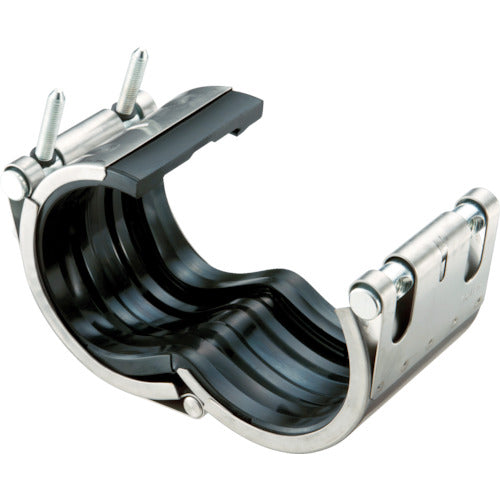

Catalog number: C-80NC Features: ●●Repairs leaks from pinholes in welded or corroded straight pipes. ●Can be installed without cutting off water supply. ●Can be used without stopping the flow of fluid. ●Lightweight and one-piece construction prevents parts from falling off and allows for safe installation. Applications: ●For repairing various types of piping. Specifications: ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Casing width (mm): 92.5 ●Rubber lip spacing (mm): 50 ●Tightening bolt hexagonal hole size (mm): 6 ●Standard torque value (N・m): 15 ●Compatible pipe outer diameter (mm): 89.1 ●Compatible fluids: Oil, gas, water ●Compatible piping: Carbon steel pipes for piping/VLP/PLP/Stainless steel pipes/PE pipes of steel pipe size ●Fluid temperature: -20 to 80℃ ●Operating pressure: Liquid/1.0MPa, Gas and other gases/0.7MPa Material/Finish: ●Casing: Stainless steel (SUS304) ●Bolts: Chromoly ●Rubber: NBR
