SHT Welding Table System TDJKM-100A 1 S

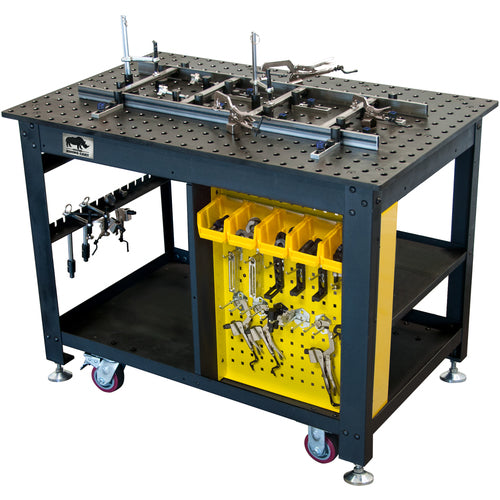

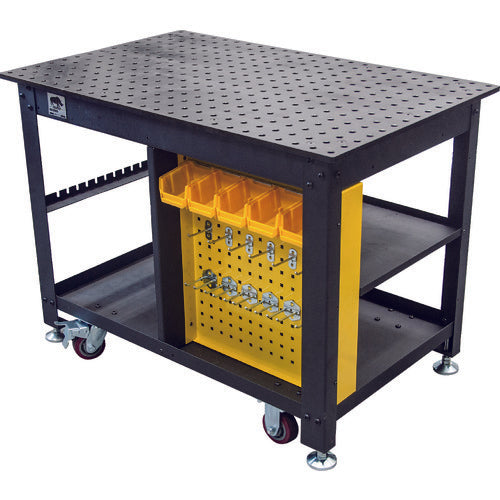

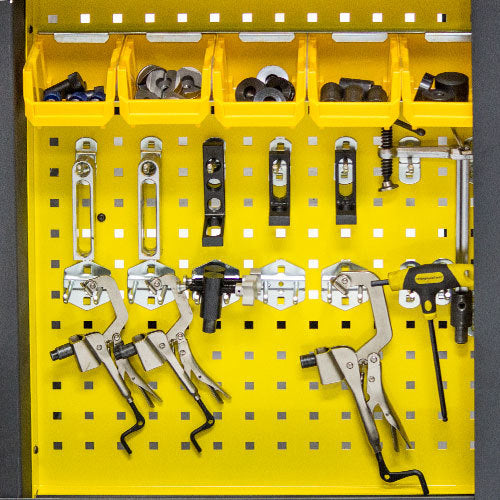

Catalog number: TDJKM-100A Features: ●This is a complete welding table system that dramatically reduces the time and effort required to make a welding fixture each time you perform welding work. ●The tabletop has highly accurate 16mm (50mm interval) holes, and by using the included accessories that fit this size, you can quickly and securely fix a wide variety of workpieces and perform stable welding work repeatedly. ●The tabletop reduces the burden of bending over when working. ●The tabletop is nitrided to reduce spatter adhesion and is highly resistant to corrosion and durable. Also, if one side wears out, it can be turned over and used again. Applications: ●For various welding work. Specifications: ●Tabletop width x depth x thickness (mm): 1200 x 750 x 16 ●Main body height (mm): 750-800 ●Tabletop hole (mm): 16 ●Thickness (mm): 16 ●Set number: 67 ●Tabletop width x depth x thickness (mm): 1200 x 750 x 16 ●Main body dimensions (mm) Height: 750-800 ●10 adjuster bolts included Material/Finish: ●Carbon steel (S45C) Set contents/accessories: ●Table body ●Adjustable ball lock bolt 24mm-28mm (T65055) x 10 ●Pin bolt 16mm (T64201) x 2 ●Freestanding C-clamp (PT09K) x 2 ●Freestanding C-clamp (PT07K) x 2 ●Insert clamp (UDN6150) x 2 ●Short stopper (T64203) x 4 ●Long stopper (T64205) x 4 ●V-block (T64216) x 8 ●Magnetic type V-block (T64217) x 2 ●V spacer (T64211) x 4 ●D-stop bar (T60630) x 8 ●Magnetic rest button (T50737) x 12 ●Angle bracket (T60304) x 2, (T60305) x 2 ●Slide clamp (TCX6210) x 2 Note: *This is a heavy item packed in a wooden crate. *Delivery will be made to the truck (forklift required).
