(株)川西水道機器

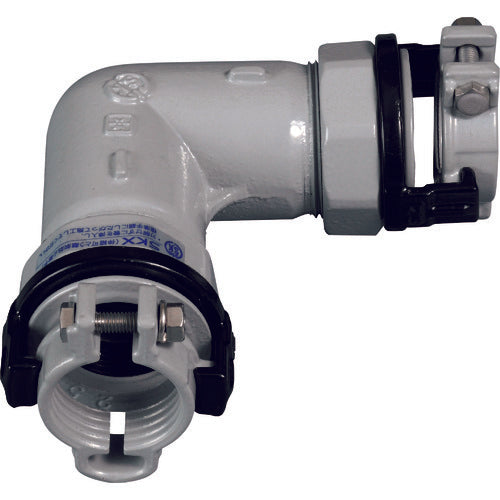

SK Kawanishi Polyethylene Pipe Fitting SKX Elbow P10 SKXLP10 1 Piece
SK Kawanishi Polyethylene Pipe Fitting SKX Elbow P10 SKXLP10 1 Piece
Regular price
¥2,873
Regular price
Sale price
¥2,873
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: SKXLP10 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and maintenance work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, making it suitable for temporary piping. ●Can be connected without an in-core. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 10 ●L (mm): 57 ●L1 (mm): 25 ●L2 (mm): 12 ●A (mm): 45 ●L0 (mm): 75 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: P10 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
