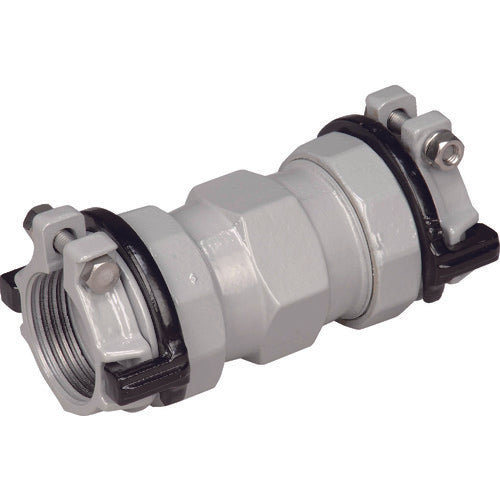

SK Kawanishi Polyethylene Pipe Fitting SKX Socket P40 SKX-S-P40 1 pc

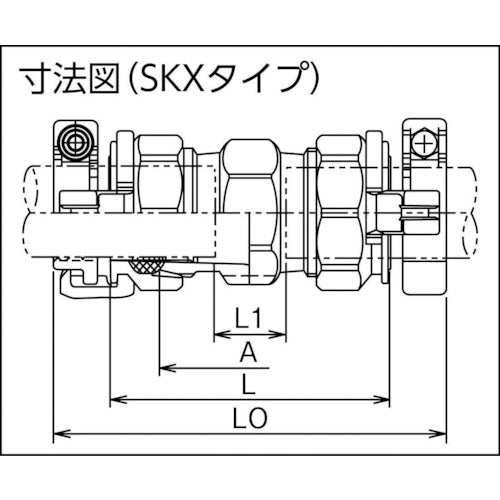

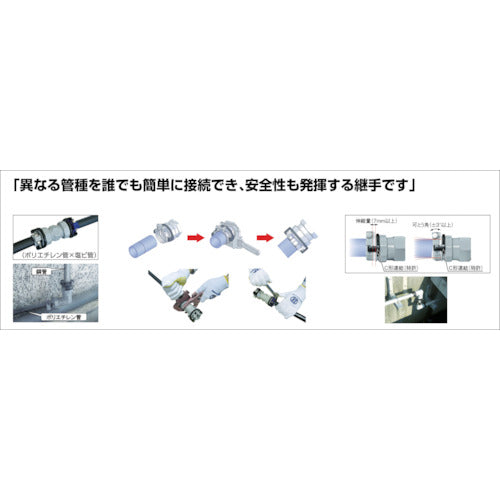

Catalog number: SKX-S-P40 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Flexible and expandable, absorbing external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Easy to remove and reinstall, also suitable for temporary piping. ●No need for an in-core to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 40 ●L (mm): 125 ●L1 (mm): 44 ●A (mm): 90 ●L0 (mm): 174 ●Maximum L1 (mm): 44 ●Minimum L1 (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0-45 ●Nominal diameter: P40 ●Operating temperature: 0-45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
