SK Kawanishi Polyethylene Pipe Fitting SKX Pipe End P50 SKX-END-P50 1 pc

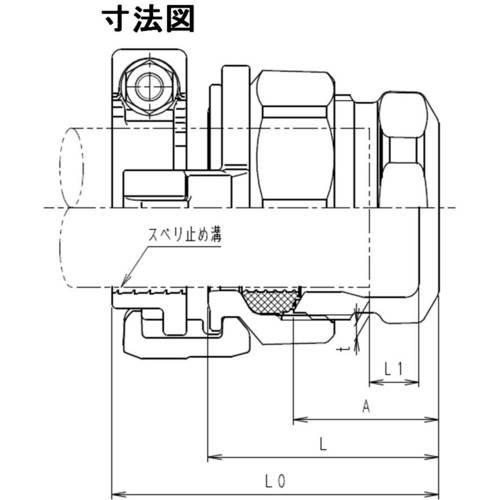

Catalogue number: SKX-END-P50 Features: ●Quick and easy pipe connection. ●Installation is completed by simply inserting the pipe and tightening it. ●Flexible and expandable function allows it to absorb external forces. ●Easy to remove and reinstall, and also suitable as a repair material. ●Can be connected without the need for an in-core. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 63 ●L1 (mm): 7 ●A (mm): 44 ●L0 (mm): 87 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: P50 ●Operating temperature: 0 to 45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
