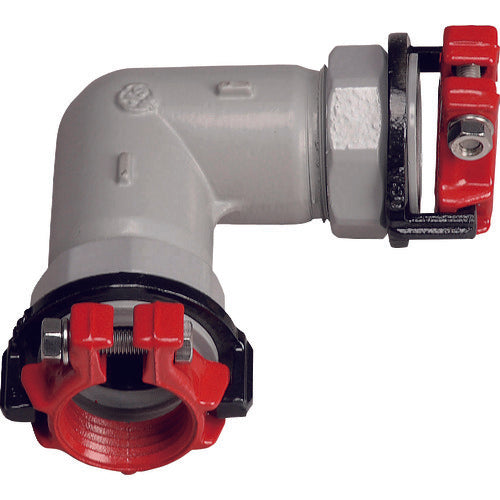

SK Kawanishi Inner and outer coated steel pipe fitting SKX Elbow D15 SKX-L-D15 1 piece

Catalog number: SKX-L-D15 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide on the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Can be connected without stripping the coating of inner and outer coated steel pipes or threading. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 15 ●L (mm): 68 ●L1 (mm): 34 ●L2 (mm): 14 ●A (mm): 55 ●L0 (mm): 89 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: D15 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
