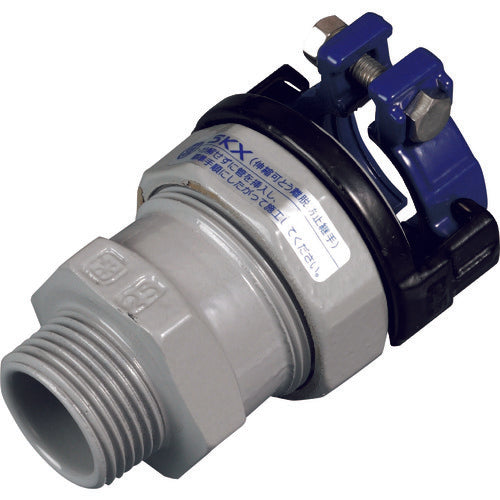

SK Kawanishi PVC pipe fitting SKX male threaded socket V25 SKX-OS-V25 1 piece

Catalog number: SKX-OS-V25 Features: ● Pipes can be connected easily and quickly. ● Installation is completed by simply inserting the pipe and tightening it. ● Flexible and expandable, it can absorb external forces. ● It can be easily removed and reinstalled, and is also suitable as a repair material. ● No need to chamfer the pipe or apply adhesive to connect. Applications: ● Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ● Nominal diameter (mm): 25 ● L (mm): 71 ● L1 (mm): 36 ● L2 (mm): 21 ● Nominal diameter: V25 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 45 ● A (mm): 56 ● d (mm): 24 ● L0 (mm): 91 ● B (mm): 17 ● Male thread dimension: 1 ● Operating pressure: 1MPa ● For PVC pipes ● Operating temperature: 0 to 45℃ Material/Finish: ● Vermicular cast iron
