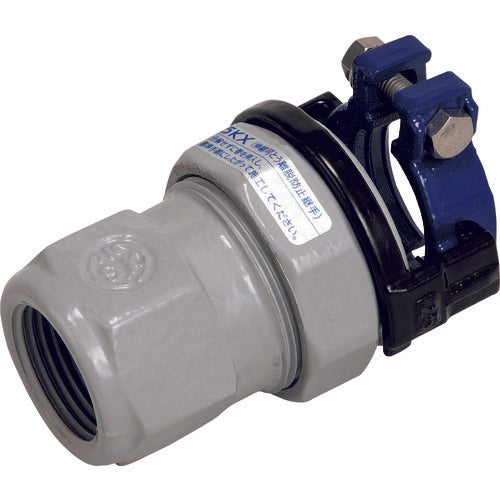

SK Kawanishi PVC pipe fitting SKX female threaded socket V25 SKX-MS-V25 1 piece

Catalog number: SKX-MS-V25 Features: ● Pipes can be connected quickly and easily. ● Installation is completed by simply inserting the pipe and tightening it. ● Flexible and expandable, it can absorb external forces. ● It can be easily removed and reinstalled, and is also suitable as a repair material. ● No need to chamfer the pipe or apply adhesive to connect. Applications: ● Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ● Nominal diameter (mm): 25 ● L (mm): 67 ● L1 (mm): 32 ● Nominal diameter: V25 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 45 ● A (mm): 52 ● L0 (mm): 87 ● B (mm): 17 ● Female thread size: 1 ● Operating pressure: 1MPa ● For PVC pipes ● Operating temperature: 0 to 45℃ Material/Finish: ● Vermicular cast iron
