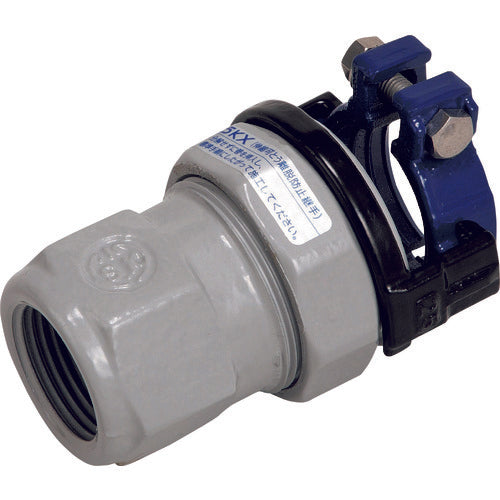

SK Kawanishi PVC pipe fitting SKX female threaded socket V40 SKX-MS-V40 1 piece

Catalog number: SKX-MS-V40 Features: ● Pipes can be connected quickly and easily. ● Installation is completed by simply inserting the pipe and tightening it. ● Flexible and expandable, it can absorb external forces. ● It can be easily removed and reinstalled, and is also suitable as a repair material. ● No need to chamfer the pipe or apply adhesive to connect. Applications: ● Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ● Nominal diameter (mm): 40 ● L (mm): 88 ● L1 (mm): 47 ● Nominal diameter: V40 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 45 ● A (mm): 70 ● L0 (mm): 112 ● B (mm): 25 ● Female thread size: 1 1/2 ● Operating pressure: 1MPa ● For PVC pipes ● Operating temperature: 0 to 45℃ Material/Finish: ● Vermicular cast iron
