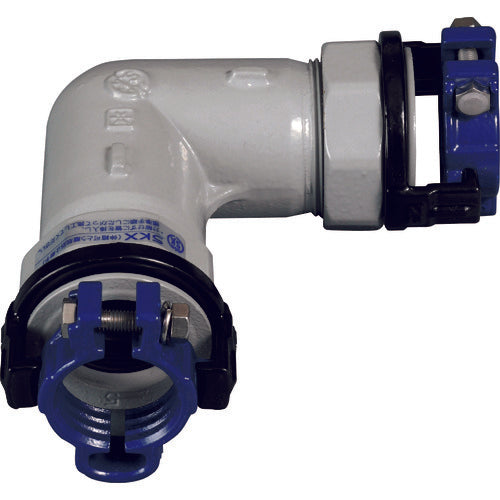

SK Kawanishi PVC Pipe Fitting SKX Elbow V13 SKX-L-V13 1 pc

Catalog number: SKX-L-V13 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, also suitable for use as a repair material. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 13 ●L (mm): 57 ●L1 (mm): 25 ●L2 (mm): 12 ●Nominal diameter: V13 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 45 ●L0 (mm): 75 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
